| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,236 pcs
|
7236 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Tape & Reel | |
| Termination Style |

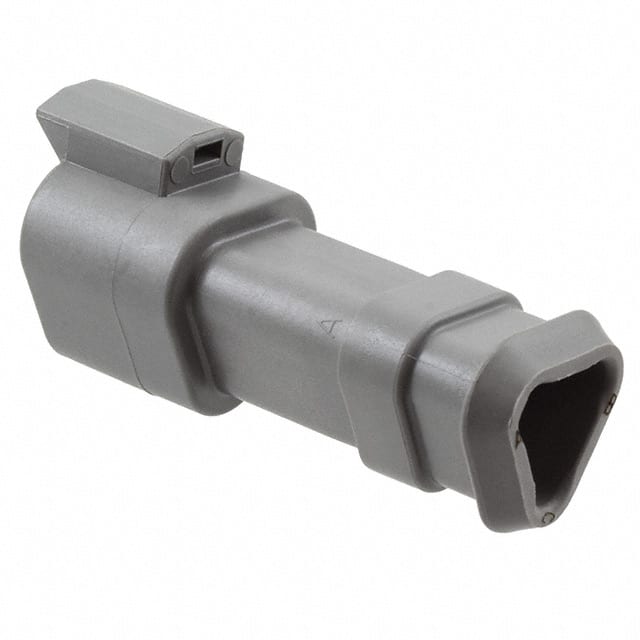

The TE Connectivity DT04-3P-E008 is a rectangular connector housing designed for use in demanding environments. It is a 3-position receptacle housing that accepts male pin contacts, terminated via crimp. The housing is free hanging (in-line) and does not require panel mounting.
This connector housing is rated IP68 and IP6K9K, providing protection against dust ingress and temporary immersion in water, as well as high-pressure, high-temperature spray. It is suitable for applications where robust environmental sealing is required.
The operating temperature range is -55°C to 125°C, allowing use in a wide variety of industrial and automotive environments. The housing is gray in color.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.33 | $2.33 |
| 10+ | $1.65 | $1.65 |
| 100+ | $1.58 | $1.58 |
| 250+ | $1.48 | $1.48 |
| 500+ | $1.39 | $1.39 |
| 1,000+ | $1.33 | $1.33 |
| 2,500+ | $1.24 | $1.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a receptacle housing that accepts male pin contacts.
It has 3 positions.
It is free hanging (in-line) mounting.
The operating temperature range is -55°C to 125°C.
It is rated IP68 and IP6K9K.
