| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,238 pcs
|
8238 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| SVHC Present | |
| Tape & Reel |

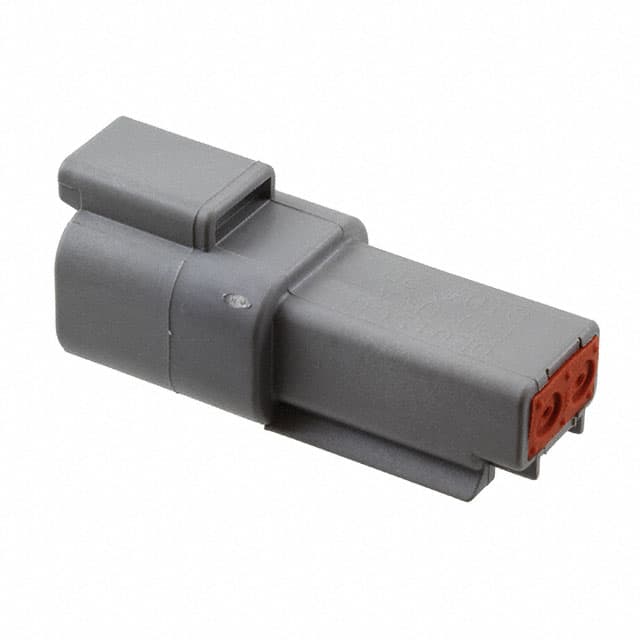

The TE Connectivity DT04-2P is a rectangular connector housing designed for reliable wire-to-wire connections. It is a 2-position, 1-row receptacle that accepts male pin contacts. The housing is configured for free hanging (in-line) mounting, making it suitable for applications where panel mounting is not possible or desired.
This housing is constructed from a rugged gray material and features a latch holder for secure mating. It is rated for an operating temperature range of -55°C to 125°C, allowing use in demanding thermal environments. The DT04-2P also carries IP68 and IP6K9K ingress protection ratings, indicating resistance to dust and water immersion, as well as high-pressure, high-temperature washdowns.
Contact termination is via crimp, providing a reliable and durable connection. The single-row design simplifies wire routing and termination. This housing is commonly used in automotive, industrial, and outdoor electrical systems where environmental sealing and mechanical robustness are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.17 | $1.17 |
| 10+ | $0.69 | $0.69 |
| 25+ | $0.61 | $0.61 |
| 100+ | $0.58 | $0.58 |
| 250+ | $0.55 | $0.55 |
| 500+ | $0.52 | $0.52 |
| 1,000+ | $0.49 | $0.49 |
| 2,500+ | $0.46 | $0.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a receptacle housing for rectangular connectors.
It has 2 positions arranged in 1 row.
It is designed for free hanging (in-line) mounting.
-55°C to 125°C.
IP68 and IP6K9K.
Gray.
Crimp termination.
