| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,642 pcs
|
7642 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Connector System | |
| Connector Type | |
| Contact Size | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Housing Material | |
| Industrial Grade | |
| Lead Style | |
| Mating Alignment Type | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Voltage | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| UL Flammability Rating |

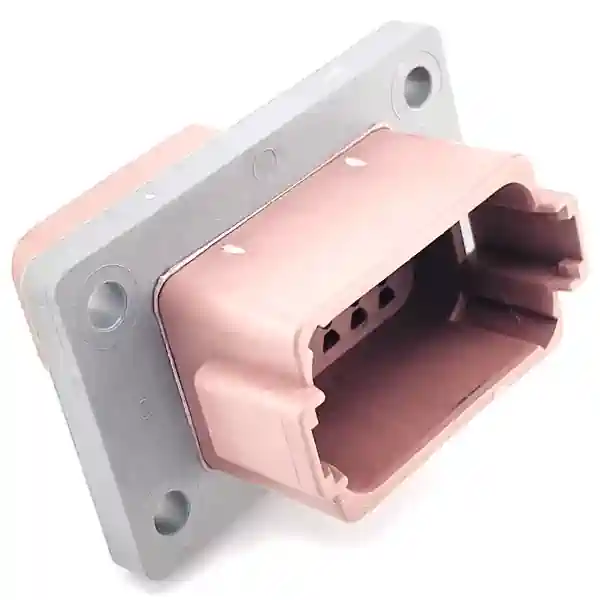

The TE Connectivity DT04-12PD-L012 is a 12-position receptacle housing from the DEUTSCH DT series, designed for wire-to-wire power applications. This housing accommodates male pin terminals (size 16) and features a 4.44mm centerline pitch with 4.45mm row-to-row spacing. It is constructed from PA GF (glass-filled polyamide) in a brown color, with a rectangular shape and 180° cable exit angle.
This connector housing is sealable and rated IP6K9K and IP68, making it suitable for harsh environments. It operates over a temperature range of -55°C to 125°C and is rated for 250VDC with a maximum contact current of 13A. The housing includes a latch holder fastening mechanism and is panel mountable with a welded flange option.
The DT04-12PD-L012 features terminal position assurance (TPA) and is keyed with code D for mating alignment. It is serviceable and compatible with insulation diameters from 2.23mm to 3.68mm. The product measures 55.12mm in width, 45.92mm in length, and 35.56mm in height.
This housing is part of the DEUTSCH DT series, widely used in automotive and industrial applications. It is packaged in boxes of 200 units and complies with EU RoHS and EU ELV regulations.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.99 | $10.99 |
| 10+ | $9.59 | $9.59 |
| 25+ | $8.99 | $8.99 |
| 50+ | $8.55 | $8.55 |
| 100+ | $7.75 | $7.75 |
| 250+ | $7.38 | $7.38 |
| 500+ | $7.17 | $7.17 |
| 1,000+ | $6.92 | $6.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DT04-12PD-L012 has 12 positions arranged in 2 rows.
The centerline pitch is 4.44mm, with a row-to-row spacing of 4.45mm.
The maximum contact current rating is 13A.
The operating voltage is 250VDC.
This connector is panel mount with a latch holder fastening type.
Yes, it is sealable with an IP rating of IP6K9K and IP68.
The operating temperature range is -55°C to 125°C.
