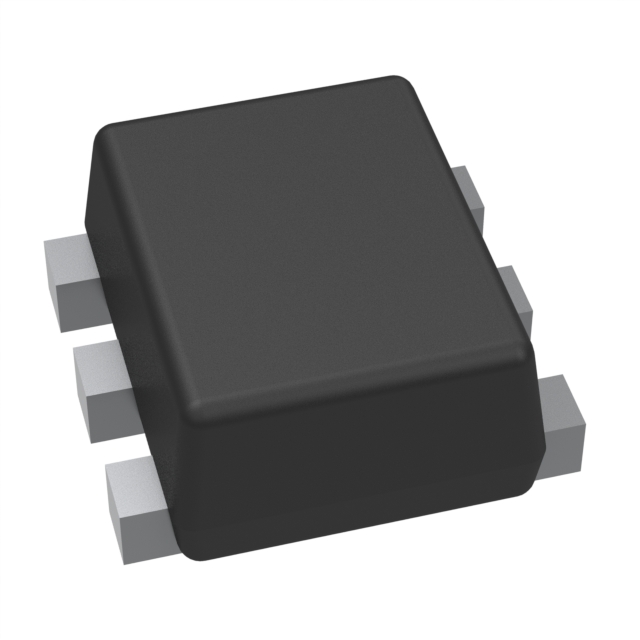

The DST857BDJ-7 is a dual PNP small signal transistor from Diodes Incorporated, designed using epitaxial planar die construction. It is housed in an ultra-compact SOT-963 surface mount package, ideal for automated assembly processes. The device features a collector-base voltage (VCBO) of -50V, collector-emitter voltage (VCEO) of -45V, and continuous collector current (IC) of -100mA. Power dissipation is rated at 300mW, with a thermal resistance of 417°C/W junction-to-ambient on standard FR-4 PCB. Operating and storage junction temperature range is -55°C to 150°C.
Electrical performance includes a minimum DC current gain (hFE) of 200 at 2mA collector current and 5V VCE, and a maximum collector-emitter saturation voltage (VCE(sat)) of 500mV at 100mA collector current and 5mA base current. The transition frequency (fT) is 340MHz, suitable for switching and amplification applications. The device is rated for ESD: Human Body Model 4000V (JEDEC Class 3A) and Machine Model 200V (JEDEC Class B).
The package terminations are matte tin plated leads, solderable per MIL-STD-202, Method 208. Moisture sensitivity level is 1 (unlimited) per J-STD-020. The device is fully RoHS3 compliant, totally lead-free, and halogen and antimony free (green device). A complementary NPN type, DST847BDJ, is available.
