| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
237 pcs
|
237 pcs | On Request | 1 | On Request | On Request | 1970-01-01 00:25:23 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Configuration | |
| Forward Voltage | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| Reverse Leakage Current | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

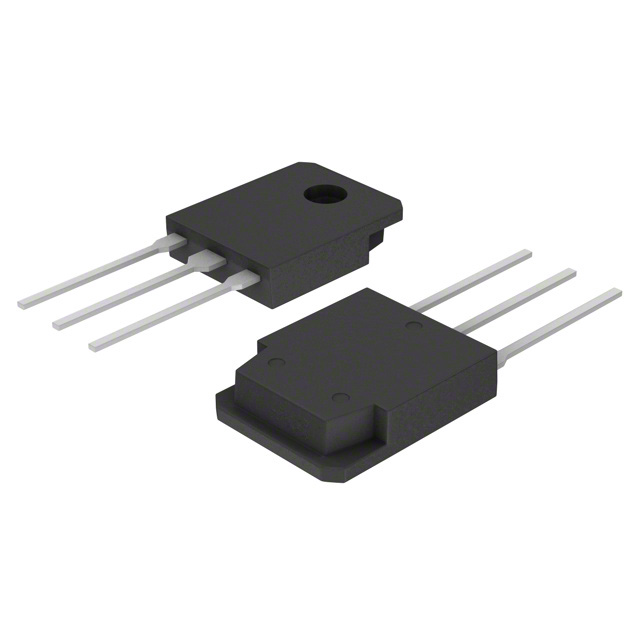

The IXYS DSSK80-003B is a Schottky diode array configured as 1 pair common cathode. It uses Schottky technology for fast switching with recovery times under 500ns at currents above 200mA. The typical forward voltage is 480mV at 40A forward current, and the reverse leakage current is 40mA at 30V reverse voltage.
This through-hole component is housed in a TO-247-3 package with the supplier device package designation TO-247 (IXTH). It operates over a temperature range of -55°C to 150°C, making it suitable for a variety of power conversion and rectification applications.
The DSSK80-003B is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). It is designed for use in power supplies, motor drives, and other circuits requiring efficient high-current rectification.
1 pair common cathode.
480 mV typical at 40 A forward current.
40 mA typical at 30 V reverse voltage.
TO-247-3 (through hole).
-55°C to 150°C.
