| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency | |
| Insertion Loss | |
| Isolation | |
| Mounting Type |

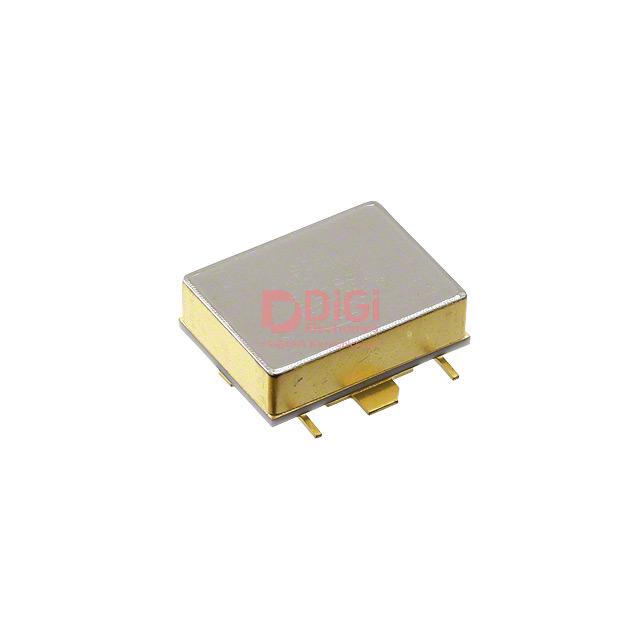

This RF Power Divider from MACOM Technology Solutions, part number DSS313PIN, is designed for applications requiring signal division across a wide frequency range. It operates from 10 MHz up to 2 GHz, making it suitable for various RF systems.
The device offers a typical insertion loss of 1.8dB, ensuring minimal signal degradation. It also provides a minimum isolation of 12dB, which helps to prevent unwanted signal coupling between output ports.
The DSS313PIN is housed in an 8-SMD (Surface Mount Device) package, measuring 9.80mm in length and 12.95mm in width. This compact size and surface-mount capability facilitate integration into printed circuit boards for automated assembly processes.
This component is categorized under RF Power Dividers/Splitters and is suitable for use in various electronic designs where signal power needs to be distributed efficiently.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DSS313PIN operates from 10 MHz to 2 GHz.
The typical insertion loss for the DSS313PIN is 1.8 dB.
The DSS313PIN provides a minimum isolation of 12 dB.
The dimensions of the DSS313PIN are 9.80mm x 12.95mm.
The DSS313PIN is supplied in an 8-SMD package.
