| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Current | |
| ESD Protection | |
| Filter Order | |
| Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Technology | |
| Type | |
| Voltage | |
| Width | |
| Withstanding Voltage |

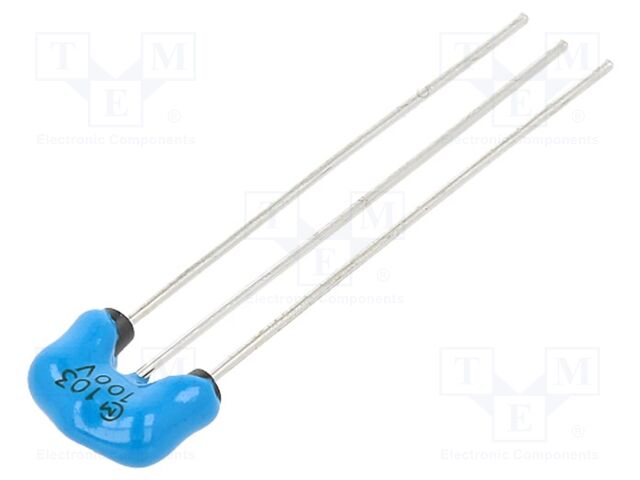

The Murata DSS1NB32A103Q55B is a low pass LC (T-Type) filter designed for EMI/RFI suppression in general purpose applications. It features a capacitance of 10000 pF (0.01 µF) with ±10% tolerance, rated voltage of 100 VDC, and a rated current of 6 A. The filter offers a 3rd order filtering characteristic with a single channel.
This through hole component comes in a radial 3-lead package with straight leads and a minimum lead length of 25.0 mm. It operates over a temperature range of -40°C to +85°C and has an insulation resistance of 1000 MΩ minimum. The withstanding voltage is 250 VDC.
Designed for general purpose EMI filtering, this filter is suitable for power line and signal line applications where low pass filtering is required. The LC T-type topology provides effective attenuation of high frequency noise while allowing DC or low frequency signals to pass.
10000 pF (0.01 µF) with ±10% tolerance.
100 VDC.
6 A.
-40°C to +85°C.
Through hole, radial 3-lead package.
RoHS3 compliant (unverified).
3rd order.
