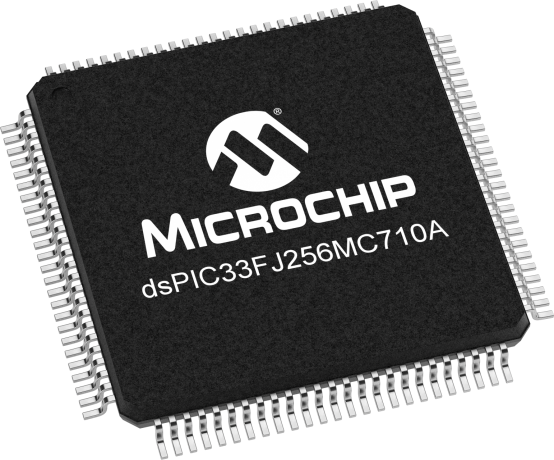

The Micro Commercial DSPIC33FJ256MC710A-I/PF is a 16-bit digital signal controller based on the dsPIC33F CPU architecture. It is designed for operation within a voltage range of 3.0V to 3.6V, with specific operating conditions supporting up to 20 MIPS at -40°C to +150°C and up to 40 MIPS at -40°C to +125°C.
Key features include a ±2% internal oscillator, low-power management modes, and integrated power-on and brown-out reset. The device supports Motor Control PWM with up to four generators and advanced analog features with two ADC modules configurable for 10-bit or 12-bit resolution. Communication interfaces include UART, SPI, I2C, and Enhanced CAN modules.
This microcontroller is housed in a 100-pin TQFP package with a 0.40mm pitch, suitable for surface mount applications. Its dimensions are 14x14x1 mm. The I/O pins offer sink/source capability up to 10 mA and are 5V-tolerant.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 3.0V to 3.6V.
It is supplied in a 100-pin TQFP package.
Operating conditions include -40°C to +150°C at up to 20 MIPS and -40°C to +125°C at up to 40 MIPS.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
