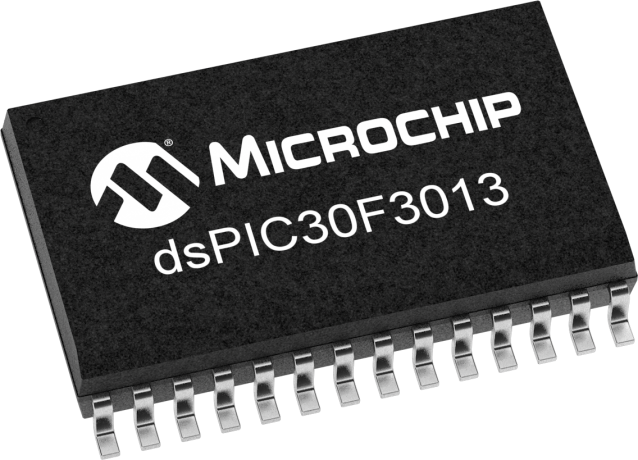

DSPIC30F3013-30I/SO The Microchip Technology DSPIC30F3013-30I/SO is a 16-bit dsPIC RISC microcontroller. It features 24KB of FLASH memory and operates at 30MHz.
Mfr Part #:

DSPIC30F3013-30I/SO

Available from 2 distributors
Mfr Name: Microchip Technology
Microchip Technology
The Microchip Technology DSPIC30F3013-30I/SO is a 16-bit dsPIC RISC microcontroller. It features 24KB of FLASH memory and operates at 30MHz.
✓ Total Stock: 56 pcs

DSPIC30F3013-30I/SO Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
54 pcs
On Request
54 pcs On Request 1 On Request On Request N/A On Request On Request
Partservice ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DSPIC30F3013-30I/SO Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
EEPROM Size
Lead Spacing
Mounting Type
Number of I
Operating Temperature
Operating Voltage
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Supply Current
Voltage
Watchdog Timer
View Similar Products (0)

DSPIC30F3013-30I/SO Description

Short technical summary and product information.

The Microchip Technology DSPIC30F3013-30I/SO is a high-performance 16-bit digital signal controller. It offers 24KB of FLASH program memory and 2KB of RAM, with a core speed of 30 MIPS. This device supports a wide operating voltage range of 2.5V to 5.5V and operates within a temperature range of -40°C to 85°C.



Connectivity options include I2C, SPI, and dual UART interfaces, along with peripherals such as a watchdog timer (WDT), PWM, and multiple timers. It features 20 general-purpose I/O pins and 10 channels for 12-bit Analog-to-Digital conversion. The microcontroller is housed in a 28-SOIC surface-mount package.



This dsPIC MCU is suitable for various embedded control applications requiring digital signal processing capabilities. Its integrated peripherals and robust architecture make it a versatile choice for designs needing efficient data handling and control.

DSPIC30F3013-30I/SO Quick Information

Product Type: Microcontroller
Series: dsPIC30F
Canonical Name: Microchip Technology DSPIC30F3013-30I/SO 16-Bit dsPIC MCU
Subcategory: 16-bit dsPIC RISC microcontroller

DSPIC30F3013-30I/SO Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

DSPIC30F3013-30I/SO Features

  • 16-bit dsPIC RISC microcontroller architecture.
  • 24KB FLASH program memory and 2KB RAM.
  • Operates at 30 MIPS core speed.
  • Supports I2C, SPI, and UART/USART interfaces.
  • Available in a 28-SOIC surface-mount package.

DSPIC30F3013-30I/SO Applications

  • Suitable for embedded control systems.
  • Ideal for digital signal processing tasks.
  • Used in applications requiring multiple interfaces.
  • Designed for efficient data handling and control.

DSPIC30F3013-30I/SO FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the DSPIC30F3013-30I/SO?

The operating voltage range is 2.5V to 5.5V.

What package type is the DSPIC30F3013-30I/SO available in?

It is available in a 28-SOIC package.

What is the operating temperature range for this microcontroller?

The operating temperature range is -40°C to 85°C.

Is the DSPIC30F3013-30I/SO RoHS compliant?

Yes, it is RoHS3 Compliant.
