| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Rate | |
| Interface | |
| Mounting Type | |
| Non | |
| On | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |
The Freescale Semiconductor DSP56303AG100 is a 24-bit digital signal processor belonging to the DSP56300 core family. It operates at an internal clock speed of 100 MHz and requires a supply voltage of 3.3V. This processor offers 100 MMACS performance and includes architectural features such as a barrel shifter, 24-bit addressing, instruction cache, and DMA.
Key electrical specifications include 24kB of on-chip RAM and 576B of on-chip ROM. The device supports interfaces such as Host Interface, SSI, and SCI. It is designed for telecommunication applications, including multi-line voice/data/fax processing, video conferencing, audio applications, control, and general digital signal processing.

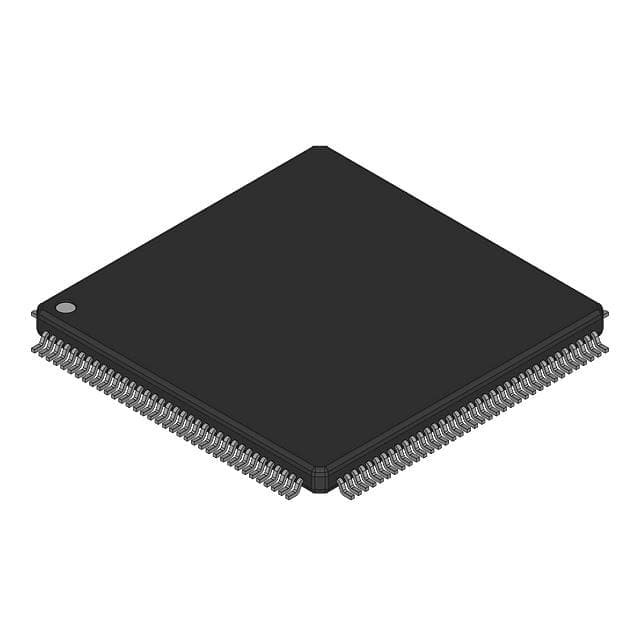

The DSP56303AG100 is available in a 144-LQFP package, suitable for surface mounting. It operates within a temperature range of -40°C to 100°C (TJ). The processor is classified as a fixed-point type.
This DSP is intended for use in applications requiring high-speed signal processing, such as wireless communication, telecommunications, and multimedia products.
The operating voltage is 3.30V.
The DSP56303AG100 is available in a 144-LQFP package.
The operating temperature range is -40°C to 100°C (TJ).
The clock speed is 100 MHz.
It is a fixed-point digital signal processor.
Key features include a barrel shifter, 24-bit addressing, instruction cache, and DMA.
