| Category | |
| Manufacturer Name | |
| Clock Rate | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Type |
The Freescale Semiconductor DSP56002PV80 is a 24-bit fixed-point digital signal processor designed for embedded systems. It offers a high clock rate of 100 MHz, providing efficient processing capabilities for signal manipulation tasks.
Key electrical specifications include 24kB of on-chip RAM and 9KB of ROM for data and program storage. The device operates with I/O and core voltages of 3.3V, making it compatible with standard logic levels. It is designed for reliable operation across a wide industrial temperature range, from -40°C to 100°C.

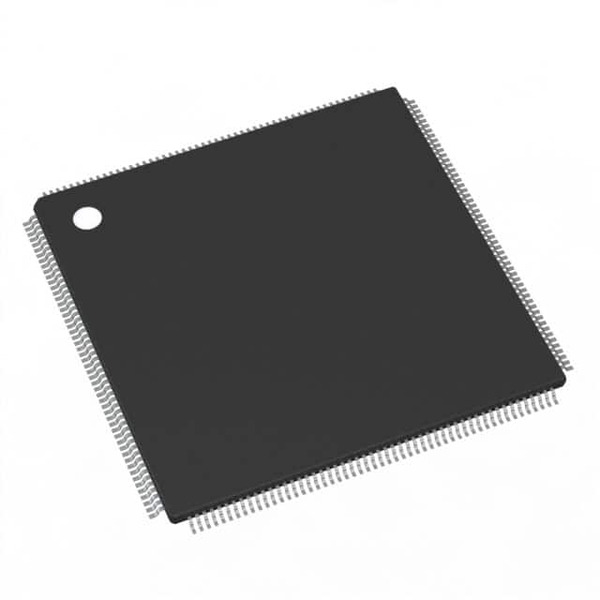

This DSP is housed in a 208-LQFP package, suitable for surface mounting. The fixed-point architecture is efficient for applications requiring precise arithmetic operations. Its series is DSP563xx.
Applications for this DSP include professional audio processing, telecommunications, industrial control, and medical imaging, particularly in legacy equipment where the DSP563xx series is already in use. It is recommended for existing designs or maintenance due to its obsolete status.
| Qty | Low | High |
|---|---|---|
| 1+ | $996.55 | $996.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The clock rate of the DSP56002PV80 is 100 MHz.
The DSP56002PV80 has 24 kB of on-chip RAM.
The DSP56002PV80 has 9 KB of ROM.
The DSP56002PV80 requires 3.3V for both I/O and core voltage.
The operating temperature range for the DSP56002PV80 is -40°C to 100°C.
The DSP56002PV80 is a Fixed Point DSP.
The DSP56002PV80 is in a 208-LQFP package and is surface mountable.
