| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
129 pcs
|
129 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Average Forward Current (IFAV) | |
| Current | |
| Diode Type | |
| Forward Voltage (Maximum @ IF=30 A, TVJ=25 °C) | |
| Forward Voltage (Typical @ IF = 30 A, TVJ = 150 °C) | |
| Isolation Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature - Junction | |
| Package / Case | |
| Repetitive Peak Reverse Voltage (VRRM) | |
| Reverse Current (Maximum @ VR=VRRM, TVJ=150 °C) | |
| Reverse Current (Maximum @ VR=VRRM, TVJ=25 °C) | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Thermal Resistance, Junction to Case (RthJC) | |
| UL | |
| UL Registration | |
| Voltage | |
| Weight |

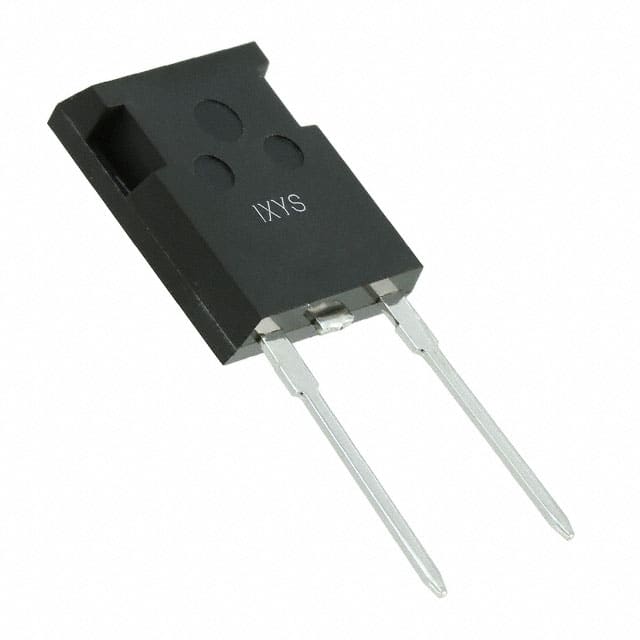

The IXYS DSEP30-06BR is a high-performance fast recovery epitaxial diode (HiPerFRED) designed for efficient switching applications. It offers a repetitive peak reverse voltage (VRRM) of 600V and an average forward current (IFAV) of 30A at a case temperature of 115°C. The diode features a typical reverse recovery time of 30ns, ensuring low switching losses and soft recovery behavior for reduced EMI.
This diode is housed in the ISOPLUS247 package, which provides through-hole mounting and excellent thermal performance. The maximum thermal resistance from junction to case is 1.1 K/W, and the junction temperature range is -55°C to 175°C. The package is isolated and UL registered (E153432), with an isolation voltage of 2500V RMS.
Key electrical specifications include a maximum forward voltage of 2.51V at 30A and 25°C, and a maximum reverse current of 250µA at 25°C. The device is suitable for applications such as antiparallel diodes for high-frequency switching devices, snubber diodes, freewheeling diodes, and rectifiers in switch-mode power supplies.
The repetitive peak reverse voltage (VRRM) is 600V.
The average forward current (IFAV) is 30A at a case temperature of 115°C.
Maximum forward voltage is 2.51V at 30A and 25°C; typical forward voltage is 1.56V at 30A and 150°C.
Typical reverse recovery time is 30ns.
It is housed in the ISOPLUS247 isolated package with through-hole mounting.
Yes, the package provides 2500V RMS isolation between leads and tab.
Junction temperature range is -55°C to 175°C.
