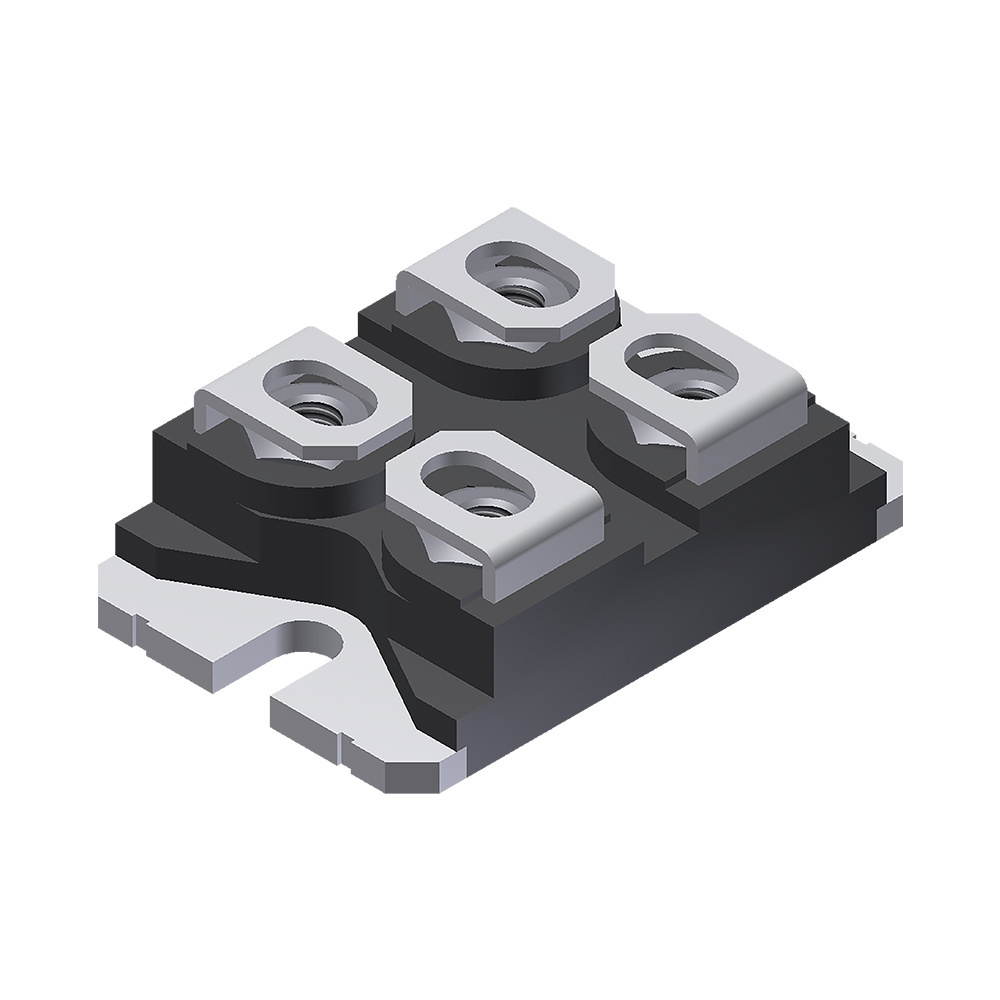

DSEP2X61-12B The DSEP2X61-12B is a dual independent standard recovery diode module from IXYS, rated for 2.9V forward voltage at 60A and 70ns reverse recovery time, housed in a SOT-227B chassis mount package.
Mfr Part #:

DSEP2X61-12B

Available from 1 distributors
Mfr Name: IXYS
IXYS
The DSEP2X61-12B is a dual independent standard recovery diode module from IXYS, rated for 2.9V forward voltage at 60A and 70ns reverse recovery time, housed in a SOT-227B chassis mount package.
✓ Total Stock: 405 pcs
$ Price Range: $23.64

DSEP2X61-12B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ACK ELEKTRONIK ✓
Non-Authorised Inventory information
405 pcs
On Request
405 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DSEP2X61-12B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Configuration
Forward Voltage
Lead Style
Mounting Type
Operating Temperature
Package / Case
Reverse Recovery Time
Reverse Recovery Time (trr)
SVHC Present
Speed
Supplier Device Package
Tape & Reel
Technology
Voltage
View Similar Products (0)

DSEP2X61-12B Description

Short technical summary and product information.

The DSEP2X61-12B is a dual independent standard recovery diode module manufactured by IXYS. It features two independent standard diodes configured in a single SOT-227-4 miniBLOC package, designed for chassis mount installation. The module offers a maximum forward voltage of 2.9V at 60A forward current and a nominal reverse recovery time of 70ns. It can handle a non-repetitive surge current of up to 200A at 200V. The operating temperature range spans from -40°C to 150°C, making it suitable for a variety of industrial power applications. The supplier device package is SOT-227B, providing a robust and thermally efficient housing for high-current rectification tasks. This component is intended for use in power supplies, motor drives, and other power conversion systems where dual independent diodes are required.

DSEP2X61-12B Quick Information

Product Type: Diode Module
Series: FRED
Canonical Name: IXYS DSEP2X61-12B Standard Diode Module, 2 Independent, SOT-227B
Subcategory: Standard Recovery Diode Module

DSEP2X61-12B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DSEP2X61-12B Estimated Pricing

Qty Low High
10+ $23.64 $23.64

Estimated market price range - modelled values for guidance only, not live distributor offers.

DSEP2X61-12B Features

  • Two independent standard diodes in one module.
  • Maximum forward voltage of 2.9V at 60A.
  • 70ns reverse recovery time.
  • 200A non-repetitive surge current capability.
  • Chassis mount SOT-227B package.

DSEP2X61-12B Applications

  • Used in power supply rectification stages.
  • Suitable for motor drive circuits.
  • Ideal for high-current power conversion.
  • Applied in industrial power systems.

DSEP2X61-12B FAQs

5 frequently asked questions generated from this part’s specifications.
What is the forward voltage of the DSEP2X61-12B?

The maximum forward voltage is 2.9V at 60A forward current.

What is the reverse recovery time of the DSEP2X61-12B?

The nominal reverse recovery time is 70ns. Note: the speed attribute lists 'Standard Recovery >500ns', which conflicts with the 70ns value — verify from official datasheet.

What is the operating temperature range?

The operating temperature range is -40°C to 150°C.

What package does the DSEP2X61-12B come in?

The package is SOT-227-4, miniBLOC, with supplier device package SOT-227B. Mounting type is chassis mount.

What is the surge current rating?

The maximum non-repetitive surge current is 200A at 200V.
