| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
119 pcs
|
119 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Configuration | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Reverse Recovery Time (trr) | |
| SVHC Present | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

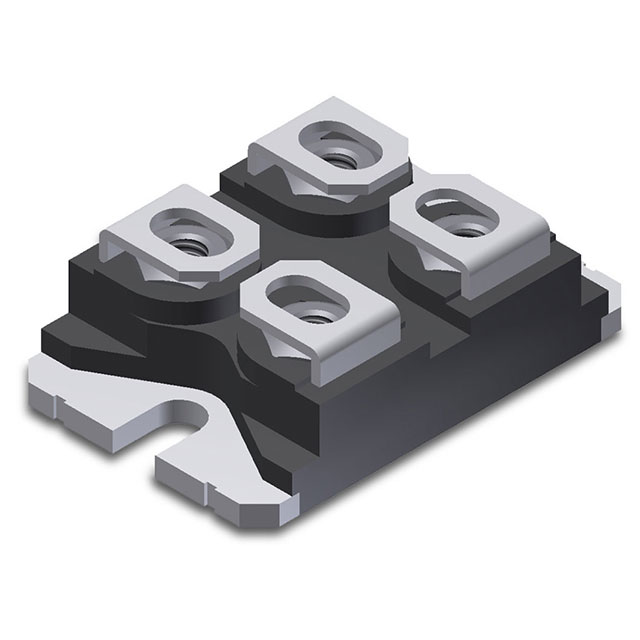

The IXYS DSEI2X60-04C is a fast recovery diode array configured as 1 pair series connection. It features a standard technology and is designed for high-current rectification applications. The device offers an average rectified current of 200A per diode at 400V and a forward voltage of 1.8V at 60A. With a reverse recovery time of 50ns, it is suitable for fast switching circuits.
The diode array is housed in a SOT-227-4 miniBLOC package with a SOT-227B supplier device package designation. It supports chassis mount installation and operates over a temperature range of -40°C to 150°C. The fast recovery speed (≤500ns, >200mA) makes it appropriate for power conversion and motor drive applications.
| Qty | Low | High |
|---|---|---|
| 6+ | $25.39 | $25.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum forward voltage is 1.8V at 60A.
The average rectified current is 200A per diode at 400V.
The reverse recovery time is 50ns.
It uses a SOT-227-4 miniBLOC package with a SOT-227B supplier device package.
The operating temperature range is -40°C to 150°C.
The mounting type is chassis mount.
