| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,764 pcs
|
2764 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current - Average Rectified (Io) (per Diode) | |
| Diode Configuration | |
| Forward Voltage (Vf) @ If | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Reverse Leakage Current (Ir) @ Vr | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage | |
| Voltage - DC Reverse (Vr) (Max) |

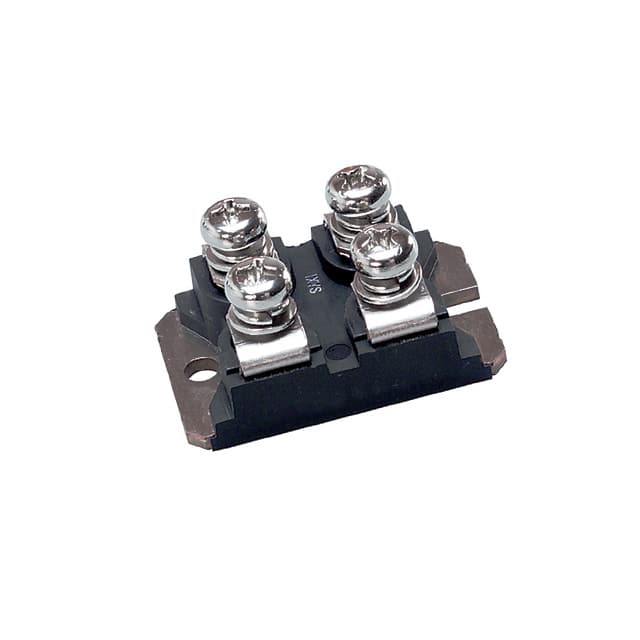

The DSEI2X121-02A is a fast recovery diode module manufactured by IXYS, designed for high-power applications requiring efficient switching. It integrates two independent standard recovery diodes, each rated for a maximum reverse voltage of 200V and an average rectified current of 123A. The module achieves a fast reverse recovery time of 50ns, enabling reduced switching losses in high-frequency circuits. Forward voltage drop is typically 1.1V at 120A, contributing to low conduction losses.
The device is packaged in a SOT-227B (miniBLOC) case designed for chassis mounting, ensuring robust thermal management. It operates over a wide temperature range from -40°C to 150°C, suitable for demanding industrial environments. The two-diode configuration allows flexible circuit topologies such as common-cathode or independent operation.
200V.
123A.
1.1V at 120A.
50ns.
SOT-227B (miniBLOC).
-40°C to 150°C.
2.
