| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Available Frequency Range | |
| Base Resonator | |
| Current | |
| Frequency Range | |
| Frequency Stability | |
| Frequency Stability (Total) | |
| Function | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output | |
| Package / Case | |
| Programmable Type | |
| Ratings | |
| Shock and Vibration Immunity | |
| Supply Current (Typical @ Active) | |
| Supply Current (Typical @ Standby) | |
| Supply Voltage | |
| Type | |
| Voltage | |
| Width |
The DSC6101JA3B-PROG is a one-time programmable MEMS oscillator from Microchip Technology's DSC61xxB family. It is designed for ultra-low power applications with typical active current of 3mA and standby current of 1µA. The oscillator supports a wide frequency range from 3.5kHz to 100MHz and provides a CMOS output with enable/disable function.
This device operates from a supply voltage of 1.71V to 3.63V and maintains a frequency stability of ±20ppm total over the full -40°C to +125°C temperature range. It is AEC-Q100 qualified for automotive applications and meets MIL-STD-883 shock and vibration standards.

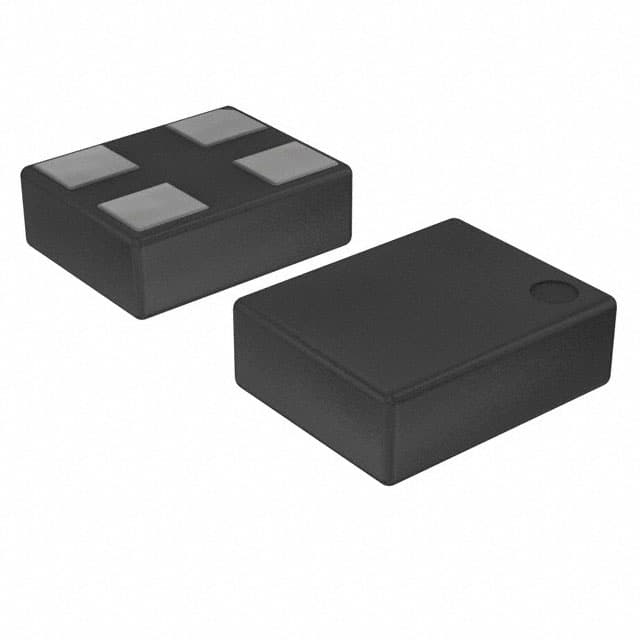

The DSC6101JA3B-PROG comes in a compact 4-VLGA package measuring 2.50mm x 2.00mm x 0.89mm, suitable for surface mount assembly. It is a blank (unprogrammed) device that must be programmed by the user, making it ideal for custom frequency requirements in space-constrained designs.
1.71V to 3.63V
4-VLGA (2.50mm x 2.00mm x 0.89mm)
-40°C to 125°C
Yes, RoHS3 Compliant and Lead Free.
3.5 kHz to 100 MHz
±20ppm total
3 mA typical active, 1 µA typical standby.
