| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Available Frequency Range | |
| Base Resonator | |
| Current | |
| Frequency Stability | |
| Function | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Package / Case | |
| Programmable Type | |
| Type | |
| Voltage | |
| Width |

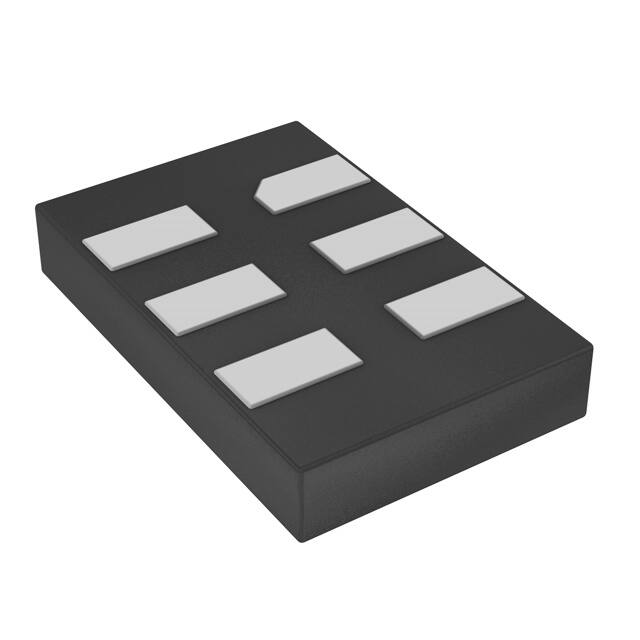

The DSC1101BL5-PROG is a MEMS-based programmable oscillator from Microchip Technology, classified as an XO (Standard) type with a blank user-programmable frequency. It offers a wide operating voltage range of 2.25V to 3.6V and a frequency stability of ±10ppm. The device operates over an extended temperature range of -40°C to 105°C, making it suitable for harsh environments.
With a CMOS output, this oscillator consumes a typical current of 35mA and includes a standby (power down) function for power savings. The package is a 6-VDFN surface mount package measuring 5.00mm x 3.20mm with a low profile height of 0.90mm.
The MEMS base resonator provides high reliability and quick start-up. This blank programmable part allows users to set the desired frequency within the 3.3 MHz to 170 MHz range using appropriate programming tools. It is RoHS3 compliant and REACH unaffected, with MSL level 1 for unlimited floor life.
2.25V to 3.6V
6-VDFN surface mount package
-40°C to 105°C
RoHS3 Compliant
±10ppm
CMOS
MEMS
