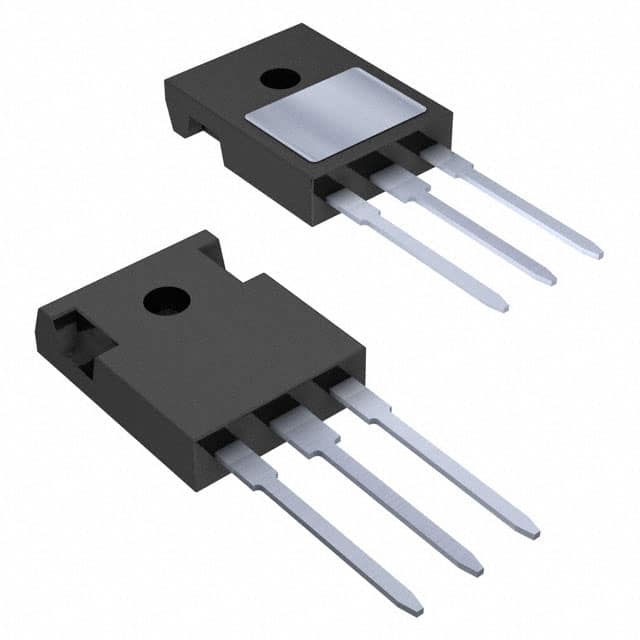

DSA90C200HR The DSA90C200HR is a Schottky diode array from IXYS featuring a 1 pair common cathode configuration, 200V reverse voltage, and 45A average rectified current per diode in a TO-247-3 (ISO247) through-hole package.
Mfr Part #:

DSA90C200HR

Available from 1 distributors
Mfr Name: IXYS
IXYS
The DSA90C200HR is a Schottky diode array from IXYS featuring a 1 pair common cathode configuration, 200V reverse voltage, and 45A average rectified current per diode in a TO-247-3 (ISO247) through-hole package.
✓ Total Stock: 36 pcs

DSA90C200HR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ACK ELEKTRONIK ✓
Non-Authorised Inventory information
36 pcs
On Request
36 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DSA90C200HR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Configuration
Mounting Type
Operating Temperature
Package / Case
Speed
Supplier Device Package
Technology
Voltage
View Similar Products (0)

DSA90C200HR Description

Short technical summary and product information.

The DSA90C200HR is a dual Schottky diode array with a common cathode configuration, designed for high efficiency power conversion applications. It provides a maximum reverse voltage of 200V and an average rectified current of 45A per diode. The forward voltage is typically 910 mV at 45A, enabling low conduction losses. The device offers fast recovery performance with a maximum recovery time of 500 ns, suitable for switching frequencies in power supplies and converters. Operating over a junction temperature range of -55°C to 175°C, it ensures reliable performance in demanding thermal environments. The DSA90C200HR is housed in a through-hole TO-247-3 package with ISO247 isolation, facilitating easy mounting and heat sinking.

DSA90C200HR Quick Information

Product Type: Schottky Diode Array
Canonical Name: IXYS DSA90C200HR Schottky Diode Array, 1 Pair Common Cathode, 200V, 45A, TO-247-3 (ISO247)
Subcategory: Rectifier Arrays

DSA90C200HR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DSA90C200HR Features

  • Dual Schottky diodes with common cathode configuration.
  • Rated for 200V reverse voltage maximum.
  • 45A average rectified current per diode.
  • Low forward voltage of 910 mV at 45 A.
  • Fast recovery time under 500 ns.

DSA90C200HR Applications

  • Used in high efficiency power supply circuits.
  • Suitable for switch mode power supplies (SMPS).
  • Ideal for freewheeling and clamping diodes.
  • Applied in DC-DC converter output rectification.
  • Used in automotive and industrial power systems.

DSA90C200HR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage of the DSA90C200HR?

The maximum reverse voltage (Vr) is 200 V.

What is the average rectified current per diode?

The average rectified current (Io) per diode is 45 A.

What is the forward voltage drop at rated current?

The forward voltage (Vf) is 910 mV maximum at If = 45 A.

What is the reverse recovery time?

The reverse recovery time is 500 ns maximum (fast recovery category).

What package does the DSA90C200HR come in?

It is available in a TO-247-3 through-hole package, with ISO247 supplier device package.

What is the operating temperature range?

The junction operating temperature range is -55°C to 175°C.

What is the diode configuration?

The diodes are configured as 1 pair common cathode (dual Schottky).
