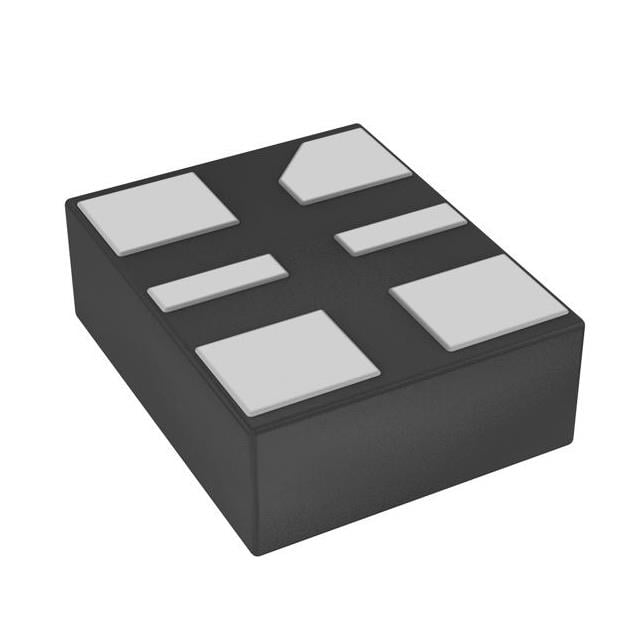

DSA1101DL3-025.0000TVAO MEMS oscillator from Microchip Technology, 25 MHz, CMOS output, ±20 ppm stability, AEC-Q100 qualified. Surface mount in 6-VDFN package, operating from -40°C to 105°C.
Mfr Part #:

DSA1101DL3-025.0000TVAO

Available from 1 distributors
Mfr Name: Microchip Technology
Microchip Technology
MEMS oscillator from Microchip Technology, 25 MHz, CMOS output, ±20 ppm stability, AEC-Q100 qualified. Surface mount in 6-VDFN package, operating from -40°C to 105°C.
✓ Total Stock: 1,000 pcs

DSA1101DL3-025.0000TVAO Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DSA1101DL3-025.0000TVAO Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Base Resonator
Current
Frequency
Frequency Stability
Function
Height
Length
Mounting Type
Operating Temperature
Output
Output Type
Package / Case
Ratings
Supply Current
Type
Voltage
Width
View Similar Products (0)

DSA1101DL3-025.0000TVAO Description

Short technical summary and product information.

The DSA1101DL3-025.0000TVAO is a MEMS-based standard oscillator (XO) from Microchip Technology. It provides a 25 MHz output with CMOS logic levels and a frequency stability of ±20 ppm. The device operates from a supply voltage range of 2.25V to 3.63V, with a typical supply current of 35 mA. It features a standby (power down) function for power saving.



This oscillator is qualified to AEC-Q100, making it suitable for automotive applications. It is designed for surface mount assembly in a compact 6-VDFN package measuring 2.50mm x 2.00mm with a seated height of 0.90mm. The operating temperature range spans -40°C to 105°C, covering harsh environments.



The MEMS resonator technology offers robustness against shock and vibration compared to quartz-based oscillators. The CMOS output is compatible with most digital logic families. The standby function allows the device to be disabled when not in use, reducing power consumption.

DSA1101DL3-025.0000TVAO Quick Information

Product Type: MEMS Oscillator
Canonical Name: Microchip Technology DSA1101DL3-025.0000TVAO MEMS Oscillator, 25 MHz, CMOS, AEC-Q100
Subcategory: MEMS Oscillator

DSA1101DL3-025.0000TVAO Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DSA1101DL3-025.0000TVAO Features

  • MEMS resonator for high reliability.
  • 25 MHz CMOS output oscillator.
  • ±20 ppm frequency stability.
  • AEC-Q100 qualified for automotive.
  • Standby power down function.

DSA1101DL3-025.0000TVAO Applications

  • Automotive engine control modules.
  • Industrial sensor interfaces.
  • General purpose timing applications.
  • Power-sensitive portable devices.

DSA1101DL3-025.0000TVAO FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range for the DSA1101DL3-025.0000TVAO?

2.25V to 3.63V.

What is the package type and dimensions?

6-VDFN package, 2.50mm x 2.00mm, height 0.90mm.

What is the operating temperature range?

-40°C to 105°C.

Is the DSA1101DL3-025.0000TVAO RoHS compliant?

Yes, RoHS3 compliant.

What is the output frequency?

25 MHz.

What is the frequency stability?

±20 ppm.

What is the output logic type?

CMOS.
