| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,847 pcs
|
9847 pcs | On Request | 1 | On Request | On Request | 1901+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Voltage (Vrrm) | |
| Speed | |
| Tape & Reel | |
| Technology | |
| Voltage |

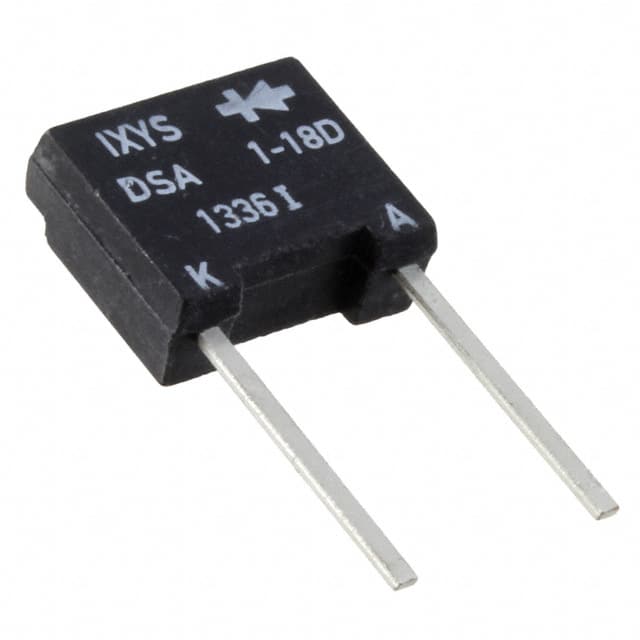

The DSA1-18D from IXYS is a single avalanche rectifier diode rated for 1800V repetitive reverse voltage and 2.3A average rectified current. Its avalanche technology provides controlled energy absorption during reverse overvoltage transients, making it a robust choice for rectification stages in power electronics. The diode reaches a forward voltage of 1.34V at a test current of 7A, with standard recovery speed above 500ns at currents above 200mA.
Suitable for line-frequency rectification and other low-speed switching circuits, the operating junction temperature range spans -40°C to 150°C, allowing use in harsh industrial environments. The DSA1-18D is provided in a radial lead through-hole package, which simplifies PCB assembly and offers reliable mechanical mounting in high-voltage designs.
As a discrete semiconductor component, this diode integrates easily into power supplies, motor drives, and other equipment requiring dependable high-voltage rectification. Its 1800V blocking capability and 2.3A current handling make it appropriate for moderate-power stages where avalanche robustness is desired.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.98 | $7.98 |
| 10+ | $5.37 | $5.37 |
| 100+ | $3.86 | $3.86 |
| 500+ | $3.48 | $3.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DSA1-18D has a repetitive reverse voltage rating of 1800V.
The average rectified current is 2.3A.
The forward voltage is 1.34V when tested at 7A.
The diode has standard recovery speed, greater than 500ns at more than 200mA.
It is available in a Radial through-hole package.
The operating temperature range is -40°C to 150°C.
Yes, it is an avalanche diode.
