DS96F172ME/883 The Texas Instruments DS96F172ME/883 is a quad differential line driver designed to meet EIA-485 and EIA-422 standards. It operates from a single +5.0V supply.
Mfr Part #:

DS96F172ME/883

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments DS96F172ME/883 is a quad differential line driver designed to meet EIA-485 and EIA-422 standards. It operates from a single +5.0V supply.
✓ Total Stock: 3,624 pcs
$ Price Range: $52.56

DS96F172ME/883 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,600 pcs
On Request
3600 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
24 pcs
On Request
24 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DS96F172ME/883 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Industrial Grade
Lead Spacing
Medical Grade
Military Grade
Mounting Type
Number of Drivers
Operating Temperature
Protocol
Supplier Device Package
Type
Voltage
View Similar Products (0)

DS96F172ME/883 Description

Short technical summary and product information.

The Texas Instruments DS96F172ME/883 is a high-speed quad differential line driver engineered to comply with EIA-485 and EIA-422 standards. Utilizing L-FAST bipolar technology, this driver offers enhanced performance with minimized power consumption. It features TRI-STATE outputs, making it optimized for balanced multipoint data bus transmission.



Key electrical specifications include an operating voltage range of 4.5V to 5.5V and an operating temperature range from -55°C to 125°C. The common mode output voltage range is -7.0V to +12V. The device is designed for multipoint bus transmission and includes thermal shutdown protection.

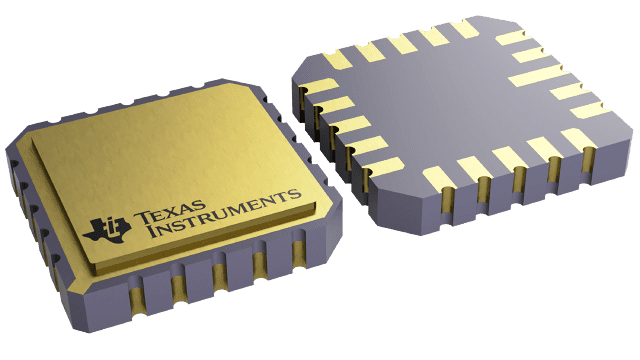

Packaged in a 20-LCCC (8.89x8.89) format, the DS96F172ME/883 is suitable for surface mount applications. It is supplied in a standard package quantity of 50 units per tube. This driver is lead and function compatible with SN75172/174 or AM26LS31/MC3487 devices.

DS96F172ME/883 Quick Information

Product Type: Differential Driver
Canonical Name: Texas Instruments DS96F172ME/883 Quad Differential Driver
Subcategory: RS-485 & RS-422 Transceivers

DS96F172ME/883 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DS96F172ME/883 Estimated Pricing

Qty Low High
1+ $52.56 $52.56

Estimated market price range - modelled values for guidance only, not live distributor offers.

DS96F172ME/883 Features

  • Meets EIA-485 and EIA-422 standards.
  • Operates from a single +5.0V supply.
  • Wide operating temperature range: -55°C to 125°C.
  • TRI-STATE outputs for multipoint bus transmission.
  • Surface mount 20-LCCC package.

DS96F172ME/883 Applications

  • Ideal for multipoint data bus transmission.
  • Suitable for RS-485 communication systems.
  • Used in RS-422 communication systems.
  • Designed for high-speed interface applications.

DS96F172ME/883 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the DS96F172ME/883?

The operating voltage for the DS96F172ME/883 is between 4.5V and 5.5V.

What is the operating temperature range of the DS96F172ME/883?

The operating temperature range for the DS96F172ME/883 is -55°C to 125°C.

What package type is the DS96F172ME/883 available in?

The DS96F172ME/883 is available in a 20-LCCC (8.89x8.89) package, suitable for surface mounting.

What communication protocols does the DS96F172ME/883 support?

The DS96F172ME/883 supports RS422 and RS485 protocols.

How many drivers are included in the DS96F172ME/883?

The DS96F172ME/883 includes 4 drivers.
