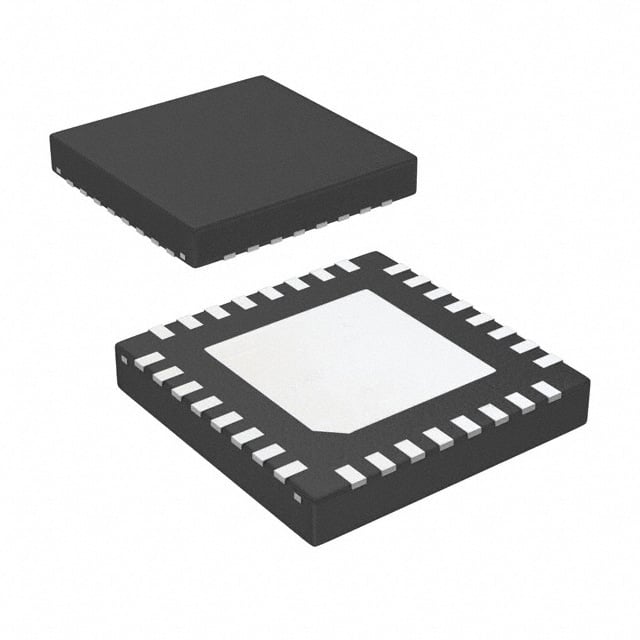

The DS91M040TSQ/NOPB from Texas Instruments is a quad M-LVDS transceiver, supporting multiple protocols including BLVDS, CML, LVDS, LVPECL, and M-LVDS. It features 4 transmitters and 4 receivers, capable of handling data rates up to 250 Mbps.
This transceiver is designed for multipoint and multidrop cable and backplane applications, offering increased drive current compared to standard LVDS. It boasts controlled transition times to minimize reflections and a wide input common mode voltage range for enhanced noise margin. The device operates within a temperature range of -40°C to 85°C and is available in a compact 32-WQFN (5x5 mm) package.
Key electrical characteristics include low jitter, low skew, and low power operation. The M-LVDS I/O pins provide 8 kV ESD protection. Its flow-through pinout simplifies PCB layout, making it suitable for space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.96 | $5.96 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DS91M040TSQ/NOPB is a quad M-LVDS transceiver.
It supports BLVDS, CML, LVDS, LVPECL, and M-LVDS protocols.
The signaling rate is up to 250 Mbps.
The operating voltage is between 3V and 3.6V.
It operates from -40°C to 85°C.
It is supplied in a 32-WQFN (5x5 mm) package.
