Mfr Part #:

DS90UB983RTDRQ1

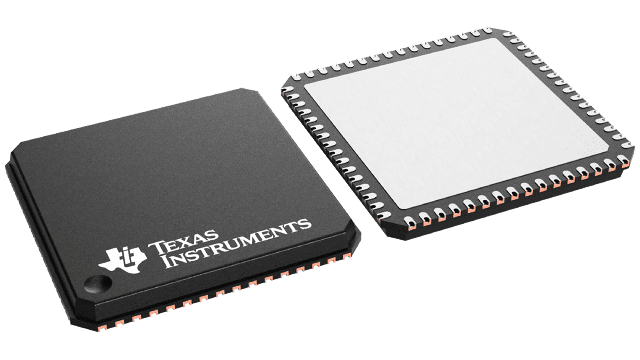

The Texas Instruments DS90UB983RTDRQ1 is a bridge serializer designed for 4K DisplayPort/eDP to FPD-Link IV conversion. It operates within a temperature range of -40 to 105°C.

✓ Total Stock: 15,609 pcs

$ Price Range: $11.20

DS90UB983RTDRQ1 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Unit Electronics Co.,Limited ✓ Non-Authorised Inventory information	13,609 pcs On Request	13609 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	2,000 pcs On Request	2000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

DS90UB983RTDRQ1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Unclassified
Manufacturer Name	Texas Instruments

View Similar Products (0)

DS90UB983RTDRQ1 Description

Short technical summary and product information.

The Texas Instruments DS90UB983RTDRQ1 is an active bridge serializer that converts 4K DisplayPort/eDP signals to the FPD-Link IV interface. This component supports DP/eDP v1.4 standards and offers flexible main link configurations of 1, 2, or 4 lanes, with each lane capable of up to 8.1 Gbps. It features an ultra-low latency control channel and supports various speeds for the FPD-Link IV interface, up to 27 Gbps over dual channels.

Designed for demanding applications, the DS90UB983RTDRQ1 includes features such as multi-display (MST) and SST support, daisy chaining, and SuperFrame unpacking. It is suitable for resolutions up to 4K at 60Hz and supports Coax/STP interconnects. The device also provides advanced diagnostics including link diagnostics, voltage and temperature monitoring, line fault detection, BIST, pattern generation, CRC, and ECC error correction.

This serializer is housed in a 64-pin VQFNP package and operates across a temperature range of -40°C to 105°C. It is compatible with IVI 94x and 92x product families and offers high-speed GPIOs and I2C communication up to 1MHz.

DS90UB983RTDRQ1 Quick Information

Product Type: Bridge Serializer

Series: FPD-Link IV

Canonical Name: DS90UB983RTDRQ1 4K DisplayPort/eDP to FPD-Link IV Bridge Serializer

Subcategory: FPD-Link SerDes

DS90UB983RTDRQ1 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Level-3-260C-168 HR

REACH Status: REACH Unaffected

Lead Free: NiPdAuAg

DS90UB983RTDRQ1 Estimated Pricing

Qty	Low	High
1+	$11.20	$11.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

DS90UB983RTDRQ1 Features

4K DisplayPort/eDP to FPD-Link IV bridge serializer.
Supports DP/eDP v1.4 link bit rates.
Main link up to 4 lanes at 8.1 Gbps.
FPD-Link IV interface up to 27 Gbps.
Operates from -40 to 105°C.

DS90UB983RTDRQ1 Applications

Suitable for 4K at 60Hz video.
Enables Y-cable interfaces.
Supports daisy chaining.
Used in automotive applications.
Provides robust link diagnostics.

DS90UB983RTDRQ1 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the operating temperature range for the DS90UB983RTDRQ1?

The operating temperature range is -40 to 105°C.

What package type is the DS90UB983RTDRQ1 available in?

The DS90UB983RTDRQ1 is available in a 64-pin VQFNP package.

What DisplayPort version does the DS90UB983RTDRQ1 support?

It supports DP/eDP v1.4.

What is the maximum speed per lane for the main link?

Each lane supports up to 8.1 Gbps.

What is the maximum speed for the FPD-Link IV interface?

The FPD-Link IV interface supports up to 27 Gbps over dual channels.

Does the DS90UB983RTDRQ1 support multi-display configurations?

Yes, it supports Multi-display (MST) and SST, including symmetric and asymmetric MST modes.
