| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,794 pcs
|
1794 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Data Rate | |
| Function | |
| Industrial Grade | |
| Input Type | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Inputs | |
| Number of Outputs | |
| Operating Temperature | |
| Output Type | |
| Supplier Device Package | |
| Voltage |
The Texas Instruments DS90UB949ATRGCRQ1 is a high-speed serializer designed for automotive infotainment systems. It converts HDMI or DisplayPort inputs to FPD-Link III outputs, supporting resolutions up to 3K at 30Hz and 1080p60 with 24-bit color depth.
This device offers single and dual FPD-Link III outputs compatible with STP, STQ, or coax cables. It includes features like adaptive equalization for signal conditioning, EMI reduction through spread spectrum clocking, and diagnostics with BIST. The operating temperature range is -40°C to 105°C (TA), and it is AEC-Q100 qualified for automotive applications.
The serializer supports HDMI v1.4b inputs and can extract up to 8 channels of HDMI audio. It also features a high-speed back channel for GPIO up to 2 Mbps and I2C/SPI interfaces for control and configuration. The package is a 64-VQFN (9mm x 9mm) with surface mount mounting type.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.68 | $11.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 105°C (TA).

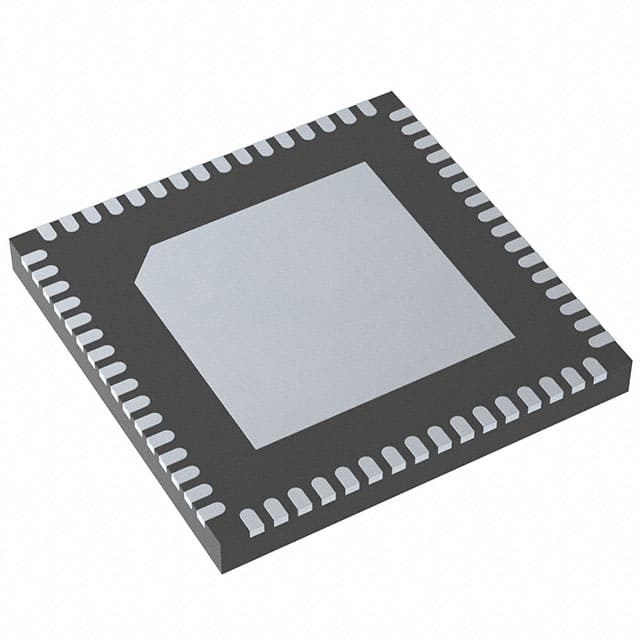

The device is available in a 64-VQFN (9x9) package, also specified as 64-VFQFN Exposed Pad.
It accepts HDMI inputs and provides FPD-Link III and LVDS outputs.
The data rate is 3.675Gbps.
Yes, the DS90UB949ATRGCRQ1 is AEC-Q100 qualified for automotive applications.
