| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,265 pcs
|
9265 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Features | |
| Function | |
| Industrial Grade | |
| Interface | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Resolution | |
| Storage Temperature | |
| Tape & Reel |
The DS90UB948TNKDRQ1 by ADI Electronics is a high-speed deserializer designed for automotive applications, specifically In-Vehicle Infotainment (IVI) systems. It features a dual FPD-Link III input interface compatible with LVDS and outputs LVDS signals.
This device supports resolutions up to 2K (2048x1080) with a 24-bit color depth, operating at a pixel clock frequency of up to 192 MHz. Key features include low-EMI point-to-point communication, adaptive equalization to compensate for channel loss, and diagnostics with BIST (Built-In Self-Test).
The DS90UB948TNKDRQ1 is AEC-Q100 qualified for automotive use, with an operating temperature range of -40°C to 105°C. It is functional safety-capable and includes SPI and I2C control interfaces, along with four high-speed GPIOs. The deserializer is available in a 64-pin WQFN package measuring 9 mm x 9 mm, suitable for surface mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.68 | $8.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DS90UB948TNKDRQ1 has FPD-Link III LVDS input compatibility and LVDS output compatibility.
It supports resolutions up to 2K (2048x1080) with a 24-bit color depth.
The operating temperature range is -40°C to 105°C.
Yes, the DS90UB948TNKDRQ1 is qualified for automotive applications and is AEC-Q100 qualified.
Key features include low-EMI point-to-point communication, adaptive equalization, EMI reduction, LVDS diagnostics, and BIST.

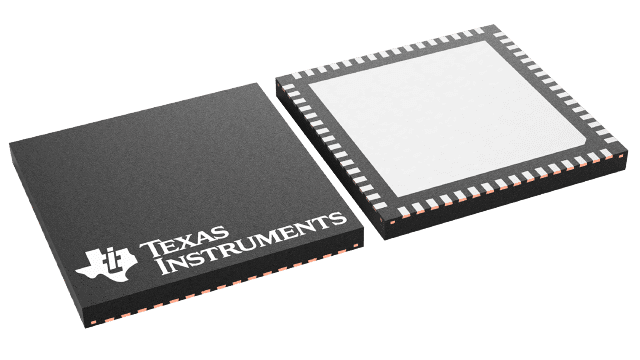

The DS90UB948TNKDRQ1 is supplied in a 64-pin WQFN (NKD) package with an area of 81 mm² (9 mm × 9 mm).
