DS90UB926QSQ

The Texas Instruments DS90UB926QSQ is an FPD-Link III Deserializer with a bidirectional control channel, suitable for applications requiring high-speed serial data communication. This device supports a color depth of 24 bits per pixel and operates with a pixel clock frequency ranging from 5 MHz to 85 MHz.

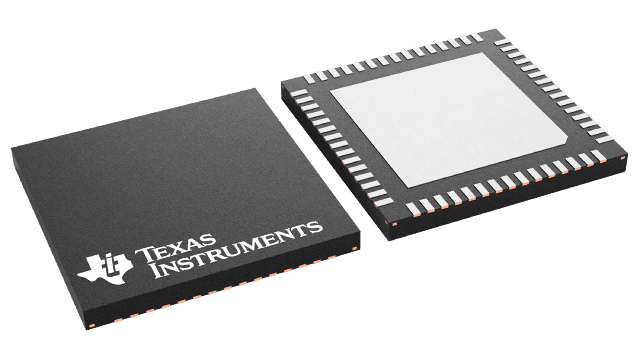

Designed for automotive applications, it features an operating temperature range of -40°C to 105°C. The deserializer is housed in a WQFN package with a 9 mm x 9 mm body size and supports surface mount installation. Its input is compatible with FPD-Link III LVDS signals, and it provides LVCMOS outputs. The device operates on a single 3.3V supply.

Key features include low-EMI point-to-point communication, signal conditioning with adaptive equalization, and EMI reduction techniques. It also incorporates LVDS diagnostics and Built-In Self-Test (BIST) capabilities. The bidirectional control interface utilizes an I2C-compatible serial control bus for configuration, supporting high-definition digital video formats and synchronized audio.
