| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,520 pcs
|
4520 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |

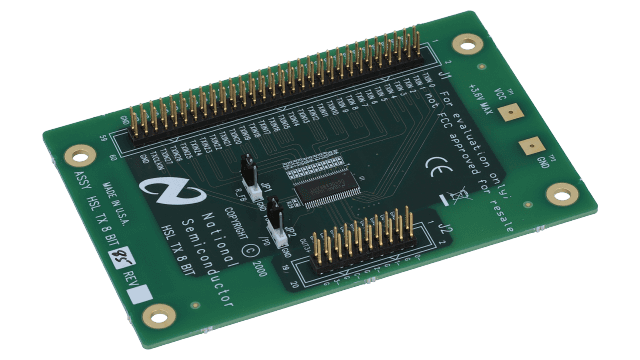

The DS90CR287MTD/NOPB from Texas Instruments is a specialized interface IC designed as a 28-bit Channel Link transmitter. It converts LVCMOS/LVTTL data into four LVDS data streams, transmitting a phase-locked clock in parallel over a fifth LVDS link. This device operates with a 3.3V supply voltage and supports a shift clock frequency range of 20 to 85 MHz.
Key electrical specifications include a data throughput of up to 2.38 Gbps and a bandwidth of up to 297.5 Mbytes/sec. It features a typical LVDS swing of 345 mV and a common-mode range of ±1V around +1.2V. The transmitter also offers 2.5 / 0 ns set & hold times on TxINPUTs and operates within an ambient temperature range of -10 to 70°C.
Packaged in a 56-TSSOP, the DS90CR287MTD/NOPB is designed for surface mount applications. Its narrow bus architecture helps reduce cable size and cost, making it suitable for applications requiring high-speed data transmission while mitigating EMI and cable size challenges associated with wide TTL interfaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.38 | $6.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the DS90CR287MTD/NOPB is 3V to 3.6V.
The DS90CR287MTD/NOPB is available in a 56-TSSOP package.
The operating temperature range for the DS90CR287MTD/NOPB is -10 to 70 °C.
The RoHS status of the DS90CR287MTD/NOPB is RoHS3 Compliant.
