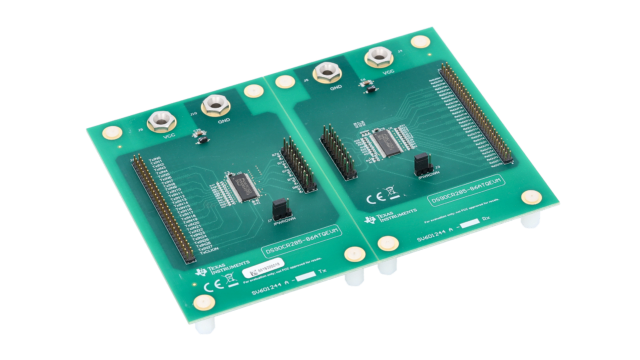

The DS90CR285 from Texas Instruments is a 28-bit LVDS Channel Link transmitter designed for high-speed data transmission. It converts 28 bits of LVCMOS/LVTTL data into four LVDS data streams, transmitting a clock signal in parallel over a fifth LVDS link. This device operates from a single +3.3V supply and supports a data throughput of up to 1.848 Gbps (231 MB/s) at a 66 MHz clock frequency.
The multiplexing of data lines significantly reduces cable size and complexity compared to traditional parallel buses, offering system cost savings and reduced shielding requirements. The DS90CR285 is compatible with the TIA/EIA-644 LVDS standard and features a PLL that requires no external components. It is offered in a low-profile 56-lead TSSOP package, suitable for surface mount applications.
With a wide operating temperature range of -40°C to +85°C and an ESD rating greater than 7 kV, the DS90CR285 is built for robust performance in various environments. Its low power consumption, typically less than 250 mW for the chipset, and a power-down mode consuming less than 0.5 mW, make it an energy-efficient solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DS90CR285 operates from a single 3.3V supply.
The DS90CR285 operates from -40°C to +85°C.
The DS90CR285 is available in a 56-TSSOP surface-mount package.
The DS90CR285 supports up to 1.848 Gbps data throughput.
Typical chipset power consumption is less than 250 mW.
Yes, the DS90CR285 has an ESD rating greater than 7 kV.
