| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,122 pcs
|
10122 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,678 pcs
|
1678 pcs | On Request | 1 | On Request | On Request | 1636+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Voltage | |
| Package Quantity | |
| Supplier Device Package | |
| Voltage |
The DS90CF386SLCX/NOPB from Texas Instruments is a high-speed LVDS receiver designed to convert four LVDS data streams into parallel 28 bits of LVCMOS data. This device operates with a supply voltage of 3V to 3.6V and supports shift clock frequencies ranging from 20 MHz to 85 MHz.
Key electrical characteristics include a typical receiver power consumption of less than 142 mW at 85 MHz and a low power-down mode consumption of less than 1.44 mW. The receiver features robust ESD protection, rated at greater than 7 kV (HBM) and 700 V (EIAJ).

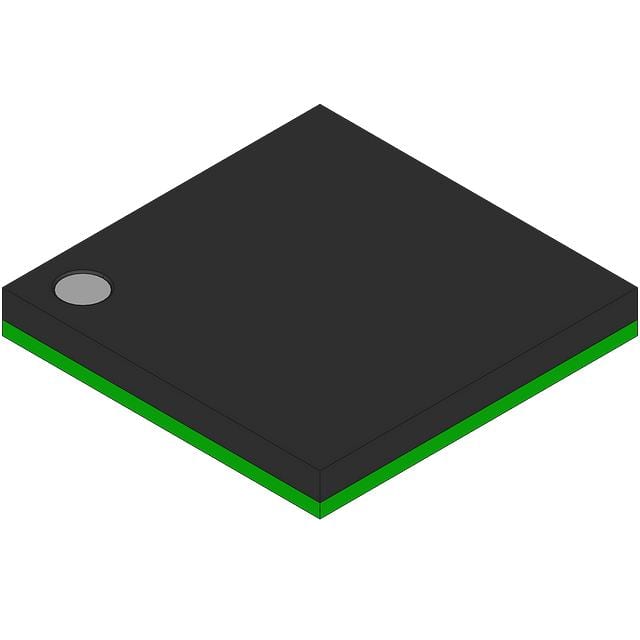

Packaged in a 64-pin NFBGA (8x8) or 64-LFBGA, this surface-mount component is suitable for various display interface applications. It is compatible with the TIA/EIA-644 LVDS standard and requires no external components for its PLL function. The operating temperature range is -10°C to 70°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.45 | $3.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 3V to 3.6V.
It is available in a 64-pin NFBGA (8x8) and a 64-LFBGA package.
The operating temperature range is -10°C to 70°C.
The device supports shift clock frequencies up to 85 MHz.
The typical receiver power consumption is less than 142 mW at 85 MHz.
