Mfr Part #:

DS90CF384MTDX/NOPB

The Texas Instruments DS90CF384MTDX/NOPB is a 3.3V LVDS Receiver IC designed for specialized interface applications. It supports up to 24-bit color depth and operates within a wide temperature range.

✓ Total Stock: 48,106 pcs

$ Price Range: $2.81

DS90CF384MTDX/NOPB Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Romaks Technologies ✓ Non-Authorised Inventory information	25,000 pcs On Request	25000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	23,010 pcs On Request	23010 pcs	On Request	1	On Request	On Request	1746+	On Request	On Request
Braun Electronic Components ✓ Non-Authorised Inventory information	96 pcs On Request	96 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

DS90CF384MTDX/NOPB Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Specialized
Manufacturer Name	Texas Instruments
Bandwidth	Up to 227 Megabytes/sec
Lead Spacing	6.1 mm
Mounting Type	Surface Mount
Operating Temperature	-40 to +85 °C

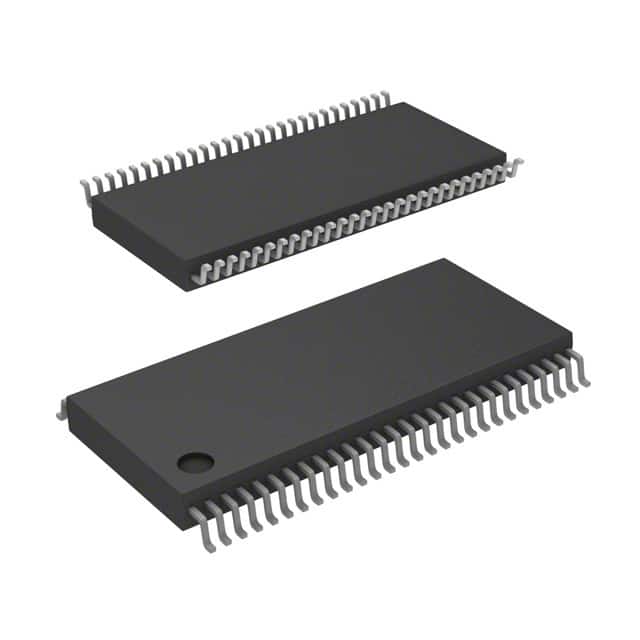

Supplier Device Package	56-TSSOP
Voltage	3.3V

View Similar Products (0)

DS90CF384MTDX/NOPB Description

Short technical summary and product information.

The Texas Instruments DS90CF384MTDX/NOPB is a specialized LVDS Receiver IC operating at 3.3V. It is designed for high-speed data transmission, supporting a shift clock frequency of 20 to 65 MHz and offering a bandwidth of up to 227 Megabytes/sec.

This component is suitable for applications requiring 24-bit color depth and features a low-EMI point-to-point communication design. It operates reliably within an extended temperature range of -40°C to +85°C. The device is available in a compact 56-TSSOP package, making it suitable for space-constrained designs.

Key electrical characteristics include a typical chipset power consumption of less than 250 mW and a power-down mode consuming less than 0.5 mW. The receiver is compatible with the TIA/EIA-644 LVDS standard and boasts an ESD rating of greater than 7 kV.

Applications for the DS90CF384MTDX/NOPB include in-vehicle infotainment systems and other scenarios demanding efficient, low-noise data transfer over LVDS links. Its design facilitates a narrow bus, reducing cable size and cost.

DS90CF384MTDX/NOPB Quick Information

Product Type: LVDS Receiver

Canonical Name: DS90CF384MTDX/NOPB 3.3V LVDS Receiver

Subcategory: LVDS Receiver

DS90CF384MTDX/NOPB Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

DS90CF384MTDX/NOPB Estimated Pricing

Qty	Low	High
1+	$2.81	$2.81

Estimated market price range - modelled values for guidance only, not live distributor offers.

DS90CF384MTDX/NOPB Features

3.3V LVDS Receiver IC
Supports 24-bit color depth
20-65 MHz shift clock support
Wide -40°C to +85°C operation
Low-EMI point-to-point communication

DS90CF384MTDX/NOPB Applications

Ideal for in-vehicle infotainment
Suitable for high-speed data links
Enables narrow bus designs
Low power consumption applications

DS90CF384MTDX/NOPB FAQs

6 frequently asked questions generated from this part’s specifications.

What is the operating voltage for the DS90CF384MTDX/NOPB?

The operating voltage is 3V to 3.6V.

What is the operating temperature range?

The operating temperature range is -40°C to +85°C.

What is the color depth supported?

It supports 24 bits per pixel (bpp).

What is the shift clock support frequency?

The device supports a shift clock frequency between 20 and 65 MHz.

What is the ESD rating?

The ESD rating is greater than 7 kV.

What is the package type?

The component is supplied in a 56-TSSOP package.
