| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19,922 pcs
|
19922 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The DS90CF366MTD/NOPB from Texas Instruments is a specialized LVDS receiver designed for high-speed serial communication, particularly in flat panel display applications. This device operates at 3.3V and supports an 18-bit color depth, making it suitable for interfaces like FPD-Link.
Key electrical specifications include a shift clock support ranging from 20 MHz to 85 MHz. The receiver power consumption is typically less than 142 mW at 85 MHz, with a power-down mode consuming a maximum of 1.44 mW. It offers robust ESD protection, rated at over 7 kV (HBM) and 700 V (EIAJ).

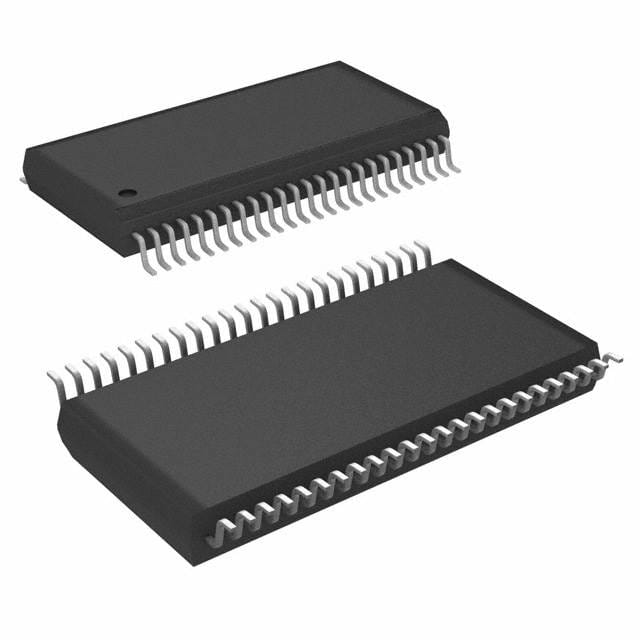

Packaged in a 48-TSSOP, the DS90CF366MTD/NOPB is designed for surface mount applications. Its operating temperature range is from -10°C to 70°C. This component is compatible with the TIA/EIA-644 LVDS standard and requires no external components for its Phase-Locked Loop (PLL) functionality. It supports various display resolutions including VGA, SVGA, XGA, and single pixel SXGA.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.37 | $2.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 3V to 3.6V.
It is supplied in a 48-TSSOP package.
The operating temperature range is -10°C to 70°C.
It supports an 18-bit color depth.
The typical receiver power consumption at 85 MHz is less than 142 mW.
The ESD rating is greater than 7 kV (HBM) and greater than 700 V (EIAJ).
