Mfr Part #:

DS9092L+

Mfr Name: Analog Devices / Maxim Integrated

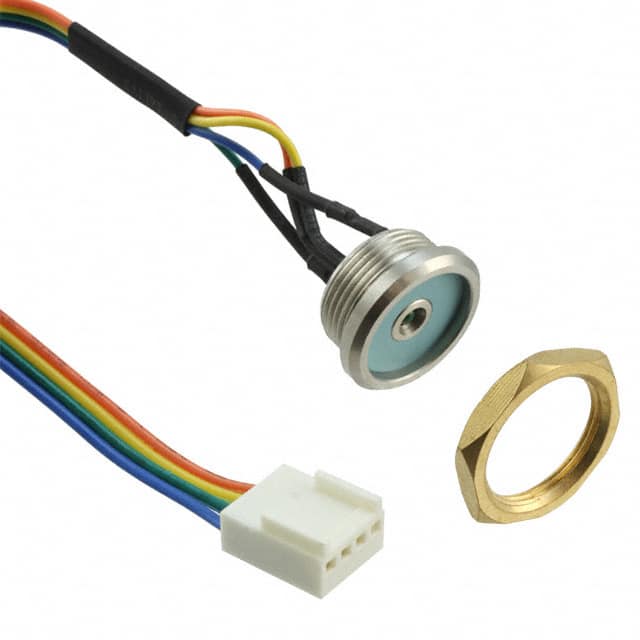

The Analog Devices DS9092L+ is a panel-mount iButton probe with an integrated green LED. It is designed for the iButton family and supports panels up to 3mm thick.

✓ Total Stock: 2 pcs

$ Price Range: $1.50

DS9092L+ Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	2 pcs On Request	2 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

DS9092L+ Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Accessories
Manufacturer Name	Analog Devices / Maxim Integrated
Accessory Type	Probe Driver, Probe Receiver
Cable Length	30cm
For Use With	iButton®
LED	2.7V
Mounting Type	Panel Mount
Panel Thickness	3mm

View Similar Products (0)

DS9092L+ Description

Short technical summary and product information.

The DS9092L+ from Analog Devices (formerly Maxim Integrated) is a robust, solid metal read/write panel-mount probe specifically designed for the iButton family of devices. It features an integrated green LED that provides user feedback.

The probe guides the entry of the iButton, and the iButton slides over the surface to self-clean the contacts. Its shallow probe cavity simplifies the removal of debris such as mud, making it suitable for harsh environments. The probe is designed to fit panels up to 3mm thick and has contacts made from solid 303 stainless steel.

This metric design comes pre-wired for easy installation with a 30cm cable and a connector. The probe body also serves as the ground contact, so the mounting panel should be non-conducting to prevent ground loops. The integrated LED is rated for a maximum of 20 mA DC at 2.7V typically.

The DS9092L+ is a lead-free and RoHS-compliant product, ensuring environmental responsibility in its design and manufacturing.

DS9092L+ Quick Information

Product Type: iButton Probe

Canonical Name: DS9092L+ iButton Probe with LED

DS9092L+ Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Lead-Free

DS9092L+ Estimated Pricing

Qty	Low	High
1+	$1.50	$1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

DS9092L+ Features

Solid metal panel-mount probe for iButton.
Integrated green LED for user feedback.
Guides iButton entry and self-cleans contacts.
Suited for panels up to 3mm thickness.
Durable stainless steel contacts.

DS9092L+ Applications

Ideal for iButton data access.
Suitable for harsh environment use.
Panel mounting applications.
Provides visual LED feedback.

DS9092L+ FAQs

6 frequently asked questions generated from this part’s specifications.

What is the DS9092L+ used for?

The DS9092L+ is an iButton probe with an integrated green LED, designed to provide the electrical contact necessary for data transfer to and from the DS19xx family of iButtons.

What is the maximum panel thickness for the DS9092L+ probe?

The DS9092L+ probe is suited for panels of up to 3mm thickness.

Does the DS9092L+ have an indicator LED?

Yes, the DS9092L+ features an integrated green LED for user-feedback signaling.

What are the contact materials for the DS9092L+ probe?

The contacts for the DS9092L+ are made from solid 303 stainless steel with blue nylon insulation.

What is the cable length provided with the DS9092L+?

The DS9092L+ comes with a 30cm cable with a connector for easy connection.

Is the DS9092L+ RoHS compliant?

Yes, the DS9092L+ is RoHS3 compliant.
