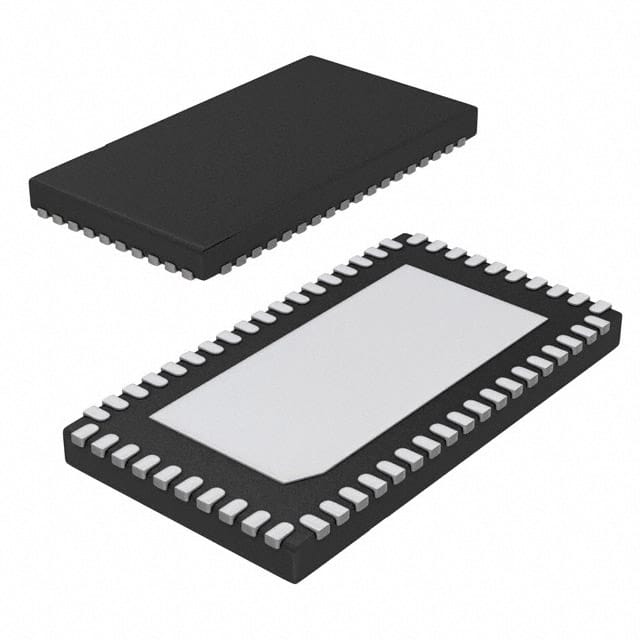

The DS80PCI800SQE/NOPB from Texas Instruments is an 8-channel PCI Express redriver that supports data rates up to 8 Gbps. This component is designed to improve signal integrity in high-speed serial links, making it suitable for PCIe, SAS, and SATA applications.
Key electrical specifications include input equalization up to 36 dB and output de-emphasis up to 12 dB, along with adjustable transmit VOD. It operates within a voltage range of 2.375V to 3.6V and features a low power dissipation of 65 mW/channel. The device also includes ±3 kV HBM ESD protection.
Packaged in a 54-WQFN (10x5.5 mm) surface-mount form factor, the DS80PCI800SQE/NOPB is designed for efficient board integration. Its operating temperature range is -40°C to 85°C, ensuring reliability in various environmental conditions. The redriver type is suitable for general-purpose applications requiring robust signal conditioning for PCIe Gen1, Gen2, and Gen3 protocols.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.28 | $9.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum data rate is 8 Gbps.
It offers input equalization and output de-emphasis.
The operating voltage range is 2.375V to 3.6V.
The operating temperature range is -40°C to 85°C.
It is supplied in a 54-WQFN (10x5.5 mm) package.
This redriver supports 8 channels.
