| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,008 pcs
|
2008 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |
The DS80C320-ECL+ is a high-speed, low-power 8-Bit microcontroller based on the 8051 architecture, offering enhanced performance over standard 8032 devices. It operates at speeds up to 33MHz and features a ROMless design, 256 Bytes of scratchpad RAM, and 32 I/O pins.
Key features include a high-speed architecture with 4 clocks per machine cycle, dual data pointers, power-fail reset, and a programmable watchdog timer. It also provides two full-duplex hardware serial ports and 13 total interrupt sources. The device is designed for applications requiring a fast and efficient 8051-compatible solution.
This microcontroller is available in a compact 44-TQFP (Thin Quad Flat Pack) surface-mount package, making it suitable for space-constrained designs. The operating temperature range is 0°C to 70°C (TA), and it requires a supply voltage between 4.5V and 5.5V.
The device operates at a supply voltage of 4.5V to 5.5V.

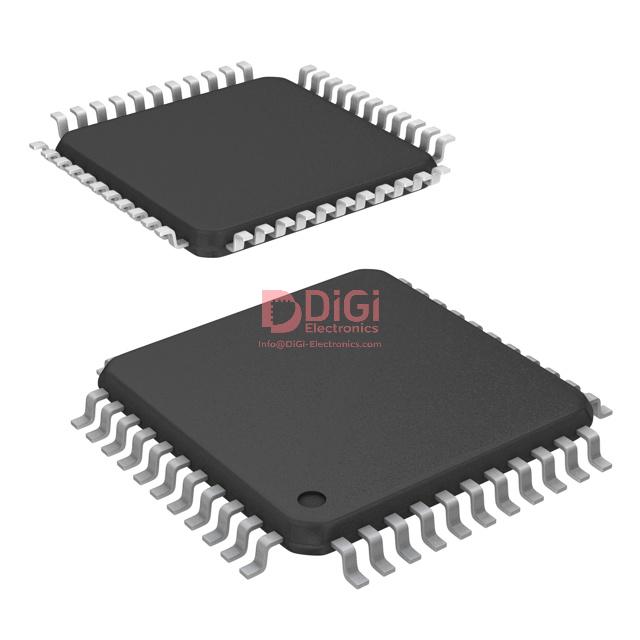

It comes in a 44-TQFP (10x10 mm) surface mount package.
The operating temperature range is 0°C to 70°C.
It is marked as RoHS3 compliant, but this status is unverified.
