Mfr Part #:

DS64BR401SQE

Mfr Name: NA

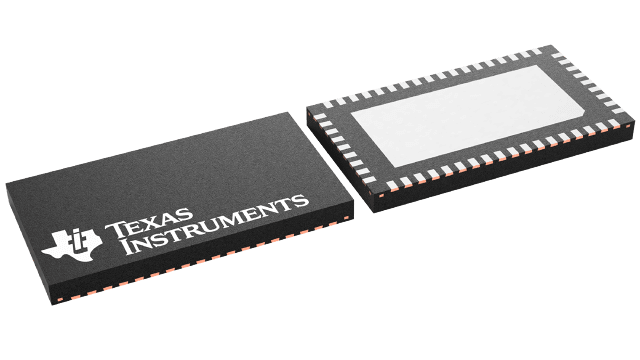

The Texas Instruments DS64BR401SQE is a quad lane bi-directional repeater designed for high-speed bus applications up to 6.4 Gbps. It offers signal conditioning on both input and output.

✓ Total Stock: 713 pcs

$ Price Range: $0.99

DS64BR401SQE Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
PROSOFT ELECTRONICS ✓ Non-Authorised Inventory information	713 pcs On Request	713 pcs	On Request	1	On Request	On Request	1012+	On Request	On Request

DS64BR401SQE Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	NA
Industrial Grade	Yes
Number of Channels	8
Number of Pins	54
Operating Temperature Range	-10 to 85 °C
SVHC Present	Not Present
Supply Voltage	2.5V ±5%

View Similar Products (0)

DS64BR401SQE Description

Short technical summary and product information.

The DS64BR401SQE from Texas Instruments is a quad lane bi-directional signal conditioning repeater supporting data rates up to 6.4 Gbps. It is suitable for SATA/SAS and other high-speed bus applications, operating at 6.0/3.0/1.5 Gbps.

This redriver features adjustable receive equalization up to +33 dB gain and adjustable transmit de-emphasis up to -12 dB. It also supports adjustable transmit VOD from 600 mVp-p to 1200 mVp-p. The device offers low power consumption at 100 mW per channel and can be programmed via pin selection or an SMBus interface.

Packaged in a 54-pin WQFN (10 mm x 5.5 mm), the DS64BR401SQE operates within a temperature range of -10°C to 85°C. It has an HBM ESD rating of over 6 kV and is compatible with 3.3V LVCMOS for SMBus interface.

Key functionalities include signal conditioning on input and output for extended reach, automatic de-emphasis scaling based on rate detect, and adjustable electrical IDLE detect threshold. It also supports SATA/SAS OOB signal pass-through with minimal envelope distortion.

DS64BR401SQE Quick Information

Product Type: Quad Bi-Directional Repeater

Canonical Name: DS64BR401SQE Quad Bi-Directional Repeater

Subcategory: Redriver

DS64BR401SQE Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

DS64BR401SQE Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

DS64BR401SQE Features

Quad lane bi-directional repeater up to 6.4 Gbps.
Adjustable receive equalization up to +33 dB.
Adjustable transmit de-emphasis up to -12 dB.
Low power consumption at 100 mW/channel.
54-pin WQFN package for compact integration.

DS64BR401SQE Applications

Extends reach for high-speed buses.
Supports SATA and SAS protocols.
Enhances signal integrity in complex layouts.
Ideal for high-speed networking applications.
Used in data communication systems.

DS64BR401SQE FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating temperature range of the DS64BR401SQE?

The operating temperature range is -10°C to 85°C.

What package is the DS64BR401SQE available in?

The device comes in a 54-pin WQFN package measuring 10 mm × 5.5 mm.

What supply voltage does the DS64BR401SQE require?

The redriver operates from a single 2.5V supply with ±5% tolerance, i.e., 2.375V to 2.625V.

What is the maximum data rate supported by the DS64BR401SQE?

The maximum data rate is 6.4 Gbps.

Does the DS64BR401SQE support SAS and SATA OOB signaling?

Yes, it supports SATA/SAS OOB signal pass-through with less than 3 ns typical envelope distortion.

What is the power consumption per channel of the DS64BR401SQE?

Power consumption is 100 mW per channel.

What ESD rating does the DS64BR401SQE have?

The device has an ESD rating greater than 6 kV HBM.
