The DS4776P+ is a ceramic surface-mount crystal oscillator from Analog Devices' DS4-XO series. It provides a precise output frequency of 77.76MHz, suitable for applications requiring tight tolerances in jitter, phase noise, and stability.
This oscillator utilizes a fundamental crystal with PLL technology to achieve its output frequency. It supports both LVDS and LVPECL output types, with an active-high output enable pin. The device is designed for a 3.3V ±5% supply voltage and offers low phase jitter, typically less than 0.7ps RMS from 12kHz to 20MHz.

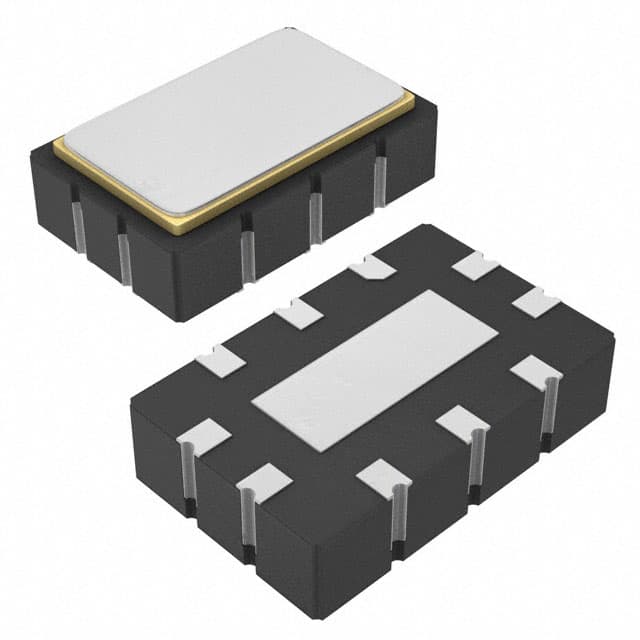

Designed for applications where PCB space is critical, the DS4776P+ comes in a 5.0mm x 3.2mm x 1.49mm, 10-pin LCCC ceramic package. It operates within a temperature range of -40°C to +85°C and is RoHS compliant.
Key applications include InfiniBand, BPON/GPON, Ethernet, 10GbE, and SONET/SDH systems.
The output frequency is 77.76MHz.
The typical phase jitter is less than 0.7ps RMS from 12kHz to 20MHz.
The operating voltage is 3.3V with a tolerance of ±5%.
It supports LVDS or LVPECL output types.
The operating temperature range is -40°C to +85°C.
It is available in a 10-LCCC ceramic surface-mount package measuring 5.0mm x 3.2mm x 1.49mm.
