| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40,178 pcs
|
40178 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
335 pcs
|
335 pcs | On Request | 1 | On Request | On Request | 09+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Features | |
| Interface | |
| Lead Spacing | |
| Memory Type | |
| Mounting Type | |
| Number of Circuits | |
| Number of Taps | |
| Operating Temperature | |
| Resistance (Ohms) | |
| Supplier Device Package | |
| Tape & Reel | |
| Taper | |
| Temperature Coefficient (Typ) | |
| Voltage |
The DS3904U-020 from Analog Devices / Maxim Integrated is a digital potentiometer designed for various electronic applications. It operates within a voltage range of 2.7V to 5.5V and offers a resistance value of 25.5k Ohms with a linear taper.
Key electrical characteristics include 128 taps, a non-volatile memory type, and an I2C interface for communication. The device is specified for an operating temperature range of -40°C to 85°C. It also features selectable address functionality.

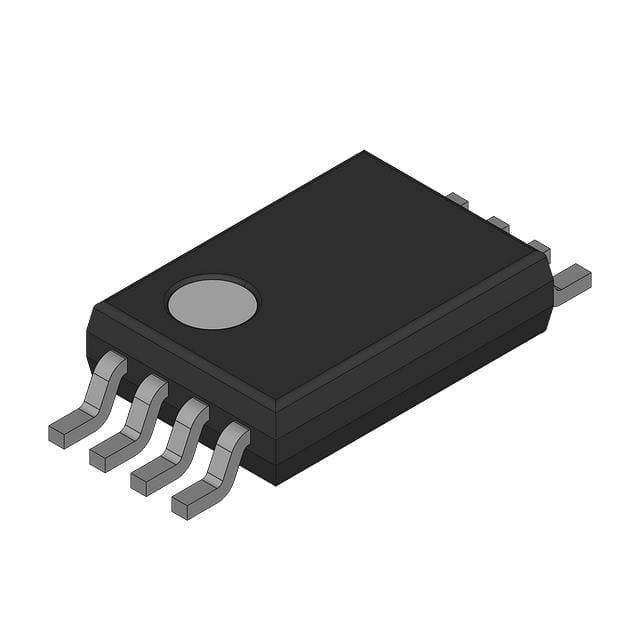

This component is supplied in an 8-µMAX package and is designed for surface mounting. The package is also described as 8-TSSOP, 8-MSOP with a width of 0.118 inches (3.00mm). The number of circuits is three, and it is configured as a rheostat.
The DS3904U-020 has a typical temperature coefficient of 123ppm/°C. Compliance information indicates RoHS3 compliance, MSL 1 Unlimited, and REACH unaffected status, though these are unverified.
The resistance of the DS3904U-020 is 25.5k Ohms.
The DS3904U-020 operates within a voltage range of 2.7V to 5.5V.
The DS3904U-020 uses an I2C interface.
The operating temperature range for the DS3904U-020 is -40°C to 85°C.
The DS3904U-020 is available in an 8-µMAX package and also described as 8-TSSOP, 8-MSOP (0.118", 3.00mm Width).
The DS3904U-020 has 128 taps.
