DS75176BMX
Texas Instruments
The DS75176BMX is a half-duplex transceiver from Texas Instruments designed for multipoint RS-485 and RS-422 communication. It operates on a single 5V supply.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
193 pcs
|
193 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Duplex | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Protocol | |
| Receiver Hysteresis | |
| Supplier Device Package | |
| Type | |
| Voltage |

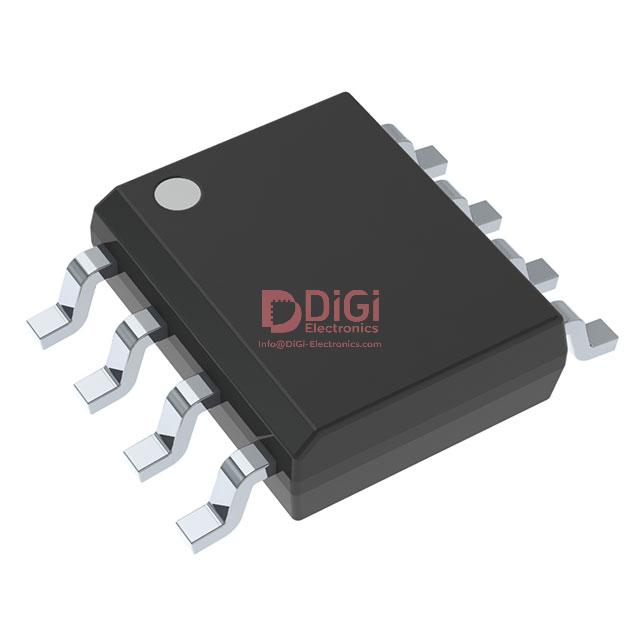

The Texas Instruments DS3695ATMX is a high-speed multipoint RS485/RS422 transceiver designed for reliable data transmission. It operates from a single +5V supply with a voltage range of 4.75V to 5.25V and maintains functionality within an operating temperature range of 0°C to 70°C.
This transceiver features TRI-STATE capability on its driver outputs, ensuring high impedance to the bus when the driver is in TRI-STATE or the device is powered off. It meets EIA standard RS485 for multipoint bus transmission and is compatible with RS-422 transceivers. Key electrical characteristics include typical driver propagation delays of 15 ns with 2 ns skew, and a wide bus common mode range of -7V to +12V. The receiver includes 70 mV of typical hysteresis.
The DS3695ATMX is supplied in an 8-SOIC surface-mount package. This component is suitable for applications requiring robust serial communication interfaces that adhere to RS485 and RS422 standards.
The DS3695ATMX operates on a 5V supply, with a specified range of 4.75V to 5.25V.
The operating temperature range for the DS3695ATMX is 0°C to 70°C.
The DS3695ATMX is supplied in an 8-SOIC package.
The DS3695ATMX supports RS422 and RS485 protocols.
The DS3695ATMX is a half-duplex transceiver.
