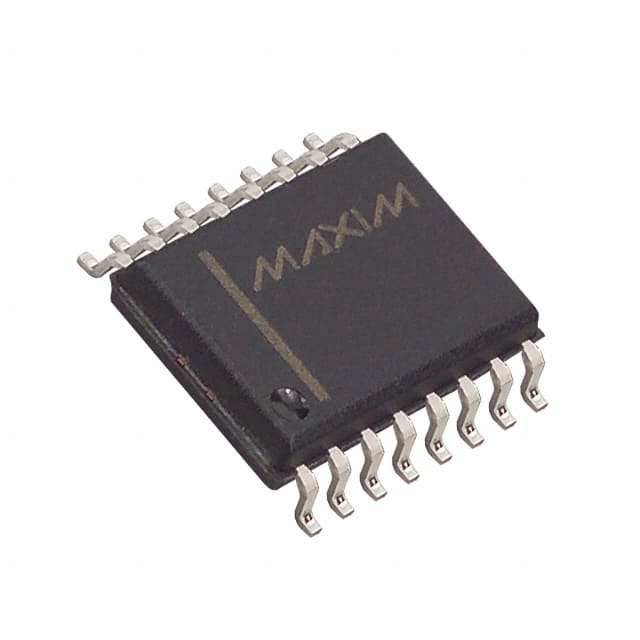

The DS32KHZSN is a temperature-compensated crystal oscillator (TCXO) from Analog Devices Inc./Maxim Integrated, designed to provide a stable 32.768 kHz output. This device is engineered for applications requiring superior timekeeping accuracy compared to standard crystal oscillators.
Key electrical specifications include a supply voltage range of 4.5V to 5.5V, a typical supply current of 220 µA, and a CMOS output. The oscillator maintains exceptional accuracy, rated at ±4 minutes per year over the full industrial temperature range of -40°C to +85°C, and ±1 minute per year from 0°C to +40°C. It also features a battery backup supply voltage range of 2.7V to 5.5V for continuous timekeeping when the main supply is grounded.
The DS32KHZSN is housed in a 16-pin SOIC surface-mount package (16-SOIC, 0.295" body width) with dimensions of 10.46 mm x 7.62 mm x 2.67 mm. It is RoHS3 compliant and UL recognized, making it suitable for a wide range of industrial and commercial timing applications.
The VCC supply voltage range is 4.5V to 5.5V. The battery backup supply voltage (VBAT) range is 2.7V to 5.5V.
The DS32KHZSN is housed in a 16-SOIC (0.295", 7.50mm Width) surface-mount package.
The operating temperature range is -40°C to +85°C (industrial temperature range).
Yes, the DS32KHZSN is RoHS3 compliant.
The accuracy is ±4 minutes per year over -40°C to +85°C and ±1 minute per year over 0°C to +40°C.
The DS32KHZSN provides a CMOS output signal at 32.768 kHz.
The frequency stability is ±7.5 ppm.
