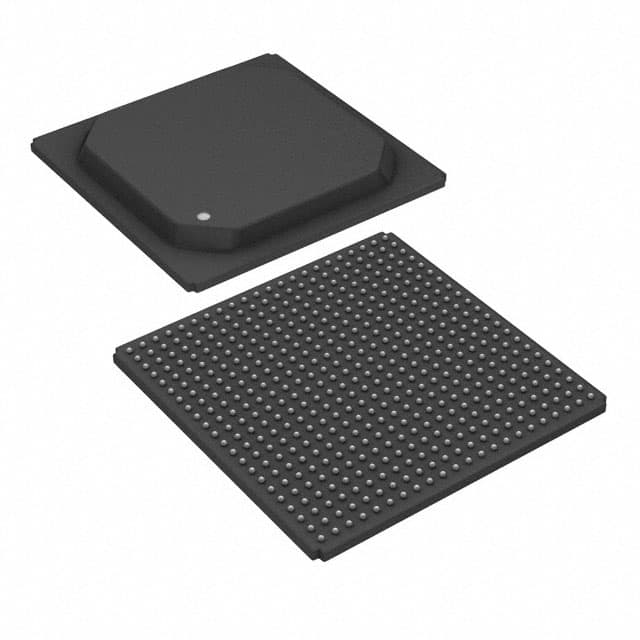

The DS32506N+ from Analog Devices / Maxim Integrated is a feature-rich Line Interface Unit (LIU) supporting DS3, E3, and STS-1 applications. This device offers independent receive and transmit paths for each port, along with an integrated jitter attenuator, pattern generator and detector, and performance monitoring counters.
Key features include per-port configurability for DS3, E3, and STS-1 standards, with individual power-down capabilities. The LIU supports receive clock and data recovery for up to 457 meters of 75Ω coaxial cable and utilizes 1:1 transformers on both transmit and receive paths. It offers three control interface options: 8/16-bit parallel, SPI, and hardware mode.
The DS32506N+ operates within an industrial temperature range of -40°C to +85°C and is housed in a compact 484-BGA (23x23mm) package. Its high-impedance transmit and receive paths enable hot-swappable board redundancy without the need for external relays. The device supports low-power operation at 1.8V/3.3V with 5V tolerant I/O.
Applications for this LIU include SONET/SDH and PDH multiplexers, digital cross-connects, access concentrators, ATM and Frame Relay equipment, CSUs/DSUs, PBXs, WAN routers and switches, and DSLAMs.
The operating temperature range for the DS32506N+ is -40°C to +85°C.
The DS32506N+ operates at 1.8V and 3.3V.
The DS32506N+ is supplied in a 484-BGA package.
The DS32506N+ functions as a Line Interface Unit (LIU).
The DS32506N+ supports LIU interface.
