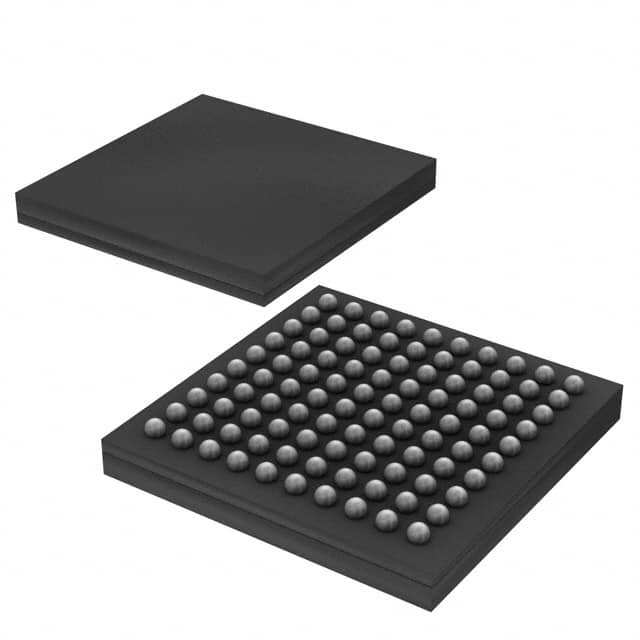

DS3170N The Analog Devices DS3170N is a single-chip transceiver for DS3 and E3 interfaces. It operates over a wide temperature range and is available in a 100-CSBGA package.
Mfr Part #:

DS3170N

Available from 3 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The Analog Devices DS3170N is a single-chip transceiver for DS3 and E3 interfaces. It operates over a wide temperature range and is available in a 100-CSBGA package.
✓ Total Stock: 4,754 pcs

DS3170N Available from 3 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DS3170N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Function
Interface
Lead Spacing
Mounting Type
Number of Circuits
Operating Temperature
Supplier Device Package
Supplier Package
Transformer Type
Voltage
View Similar Products (0)

DS3170N Description

Short technical summary and product information.

The Analog Devices DS3170N is a versatile single-chip transceiver designed for DS3 and E3 telecommunications interfaces. It integrates a framer and a line interface unit (LIU) to connect directly to DS3/E3 physical copper lines.



Key features include receive clock/data recovery, transmit waveshaping, and an optional jitter attenuator. The device supports DS3 (M23 or C-Bit) and E3 (G.751 or G.832) framing formats. It includes a built-in HDLC controller with a 256-byte FIFO for overhead byte insertion/extraction and an on-chip BERT for pattern generation and analysis.



This transceiver interfaces to 75-ohm coaxial cable and uses 1:2 transformers on both transmit and receive paths. It offers flexible overhead insertion/extraction and various loopback modes. The integrated clock rate adapter generates necessary clock frequencies from a single reference source. The DS3170N is compatible with 8-/16-bit parallel and slave SPI serial microprocessor interfaces.



Applications for the DS3170N include access concentrators, multiservice access platforms (MSAPs), routers, switches, SONET/SDH equipment, PBXs, test equipment, and integrated-access devices (IADs). It is housed in a 100-pin CSBGA package and operates from a 3.3V supply with 5V tolerant I/O.

DS3170N Quick Information

Product Type: Telecom IC
Canonical Name: DS3170N Single-Chip Transceiver
Subcategory: Telecom

DS3170N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead(Pb)-free/RoHS compliant package

DS3170N Features

  • Single-chip transceiver for DS3 and E3.
  • Integrated framer and LIU functions.
  • Supports DS3 and E3 framing formats.
  • On-chip HDLC controller and BERT.
  • 100-CSBGA package for surface mounting.

DS3170N Applications

  • Used in access concentrators.
  • Suitable for multiservice access platforms.
  • Applied in routers and switches.
  • Incorporated in SONET/SDH equipment.
  • Utilized in test equipment.

DS3170N FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the DS3170N?

The operating temperature range for the DS3170N is -40°C to 85°C.

What type of interface does the DS3170N support?

The DS3170N supports DS3 and E3 interfaces.

What is the package type for the DS3170N?

The DS3170N is available in a 100-CSBGA package.

What is the operating voltage for the DS3170N?

The operating voltage for the DS3170N is 3.3V.

Does the DS3170N have a built-in HDLC controller?

Yes, the DS3170N has a built-in HDLC controller with a 256-byte FIFO.

What framing formats does the DS3170N support?

The DS3170N supports DS3 (M23 or C-Bit) and E3 (G.751 or G.832) framing formats.
