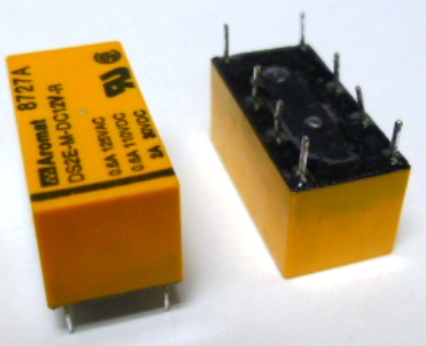

DS2E-M-DC12V The Aromat DS2E-M-DC12V-R is a DPDT 12V reverse polarity relay. It offers a 2A contact current rating and operates within a temperature range of -40 to 70°C.
Mfr Part #:

DS2E-M-DC12V

Available from 1 distributors
Mfr Name: NAIS
NAIS
The Aromat DS2E-M-DC12V-R is a DPDT 12V reverse polarity relay. It offers a 2A contact current rating and operates within a temperature range of -40 to 70°C.
✓ Total Stock: 1 pcs
$ Price Range: $2.00

DS2E-M-DC12V Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DS2E-M-DC12V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Coil Current
Coil Resistance
Coil Type
Operate Time
Operating Temperature
Power Consumption
Release Time
Termination
View Similar Products (0)

DS2E-M-DC12V Description

Short technical summary and product information.

This Aromat DS2E-M-DC12V-R is a DPDT (Double Pole Double Throw) relay designed for 12V DC operation with reverse polarity functionality. It features a contact current rating of 2A and a maximum voltage rating of 250V AC and 220V DC.



The relay has a coil voltage of 12V DC, a coil resistance of 360 Ohms, and a coil power consumption of 400 mW. It operates with a coil current of 33.3 mA. The operate time is 10 ms, and the release time is 5 ms.



With a minimum operating temperature of -40°C and a maximum of 70°C, this relay is suitable for a range of environmental conditions. The termination style is PC Pin, making it suitable for printed circuit board mounting.



This component is listed as New Old Stock (NOS) and is no longer available for export. It is identified by the manufacturer part number DS2E-M-DC12V-R.

DS2E-M-DC12V Quick Information

Product Type: DPDT Relay
Canonical Name: Aromat DS2E-M-DC12V-R DPDT 12V Reverse Polarity Relay
Subcategory: DPDT Relay

DS2E-M-DC12V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DS2E-M-DC12V Estimated Pricing

Qty Low High
1+ $2.00 $2.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

DS2E-M-DC12V Features

  • DPDT 12V reverse polarity relay
  • 2A contact current rating
  • 250VAC maximum voltage rating
  • PC Pin termination
  • Operates from -40°C to 70°C

DS2E-M-DC12V Applications

  • Suitable for reverse polarity relay applications.
  • Used in control circuits requiring DPDT switching.
  • Ideal for industrial automation relay switching.
  • Applicable in safety interlock systems.
  • Suitable for low-voltage relay control systems.

DS2E-M-DC12V FAQs

5 frequently asked questions generated from this part’s specifications.
What is the coil voltage for the Aromat DS2E-M-DC12V-R relay?

The coil voltage for the Aromat DS2E-M-DC12V-R relay is 12 V DC.

What is the contact current rating of the DS2E-M-DC12V-R relay?

The contact current rating for the DS2E-M-DC12V-R relay is 2 A.

What is the maximum AC voltage rating for this relay?

The maximum AC voltage rating for the DS2E-M-DC12V-R relay is 250 V.

What is the operating temperature range of the DS2E-M-DC12V-R?

The operating temperature range for the DS2E-M-DC12V-R relay is -40°C to 70°C.

What type of relay is the DS2E-M-DC12V-R?

The DS2E-M-DC12V-R is a DPDT Non-Latching relay.
