DS280DF810ABVR The Texas Instruments DS280DF810ABVR is an 8-channel, 28.4Gbps retimer featuring input equalization. It operates across a wide temperature range of -40°C to 85°C.
Mfr Part #:

DS280DF810ABVR

Available from 4 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments DS280DF810ABVR is an 8-channel, 28.4Gbps retimer featuring input equalization. It operates across a wide temperature range of -40°C to 85°C.
✓ Total Stock: 10,043 pcs
$ Price Range: $43.26

DS280DF810ABVR Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DS280DF810ABVR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate (Max)
Input
Lead Spacing
Mounting Type
Number of Channels
Operating Temperature
Output
Signal Conditioning
Supplier Device Package
Type
View Similar Products (0)

DS280DF810ABVR Description

Short technical summary and product information.

The Texas Instruments DS280DF810ABVR is an octal-channel, multi-rate retimer designed for high-speed signal integrity applications. It supports data rates from 20.2Gbps up to 28.4Gbps, including various sub-rates.



Key electrical features include integrated signal conditioning with adaptive continuous time linear equalizer (CTLE) and adaptive decision feedback equalizer (DFE), supporting significant channel loss. The retimer offers ultra-low latency, typically less than 500 ps at 28.4Gbps. It also features a single power supply requirement, no low-jitter reference clock, and integrated AC coupling capacitors to simplify board design and reduce Bill of Materials (BOM) cost.

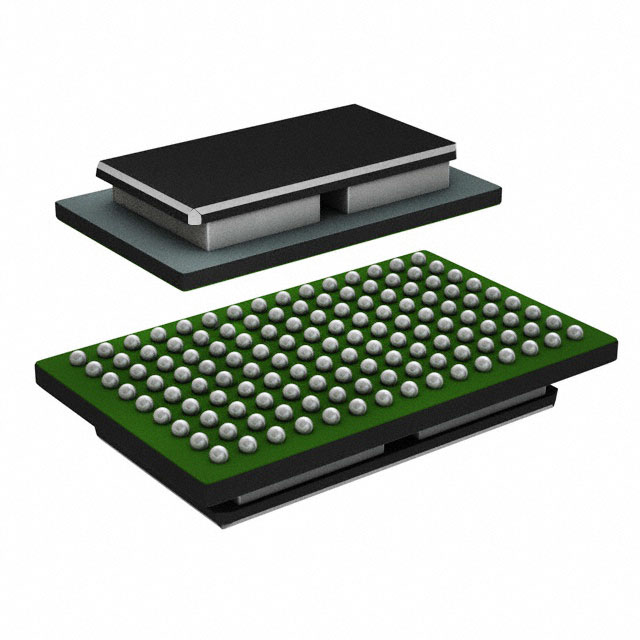

This device is housed in a compact 135-FCBGA package measuring 8.00mm x 13.00mm, with a pinout designed for easy flow-through routing of high-speed signals. The operating temperature range is extended from -40°C to 85°C, making it suitable for demanding environments. The DS280DF810ABVR is classified as a Retimer Mux within the Signal Buffers, Repeaters, Splitters category.

DS280DF810ABVR Quick Information

Product Type: Retimer
Canonical Name: DS280DF810ABVR 28-Gbps Multi-Rate 8-Channel Retimer
Subcategory: Signal Buffers, Repeaters, Splitters

DS280DF810ABVR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DS280DF810ABVR Estimated Pricing

Qty Low High
1+ $43.26 $43.26

Estimated market price range - modelled values for guidance only, not live distributor offers.

DS280DF810ABVR Features

  • 8-channel multi-rate retimer.
  • Supports up to 28.4Gbps data rates.
  • Integrated input equalization (CTLE/DFE).
  • Ultra-low latency: <500 ps typical.
  • Operates from -40°C to 85°C.

DS280DF810ABVR Applications

  • Ideal for high-speed networking.
  • Used in optical modules.
  • Suitable for data center interconnects.
  • Supports Ethernet and Infiniband.

DS280DF810ABVR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum data rate supported by the DS280DF810ABVR?

The DS280DF810ABVR supports a maximum data rate of 28.4 Gbps.

How many channels does the DS280DF810ABVR have?

The DS280DF810ABVR has 8 channels.

What is the operating temperature range of the DS280DF810ABVR?

-40°C to 85°C.

What package type is used for the DS280DF810ABVR?

It uses a 135-FCBGA (8.05x13.05 mm) surface-mount package.

What input compatibility does the DS280DF810ABVR support?

It supports AC-coupling and CML input compatibility.

Is the DS280DF810ABVR RoHS compliant?

It is RoHS3 compliant, but this status is unverified.
