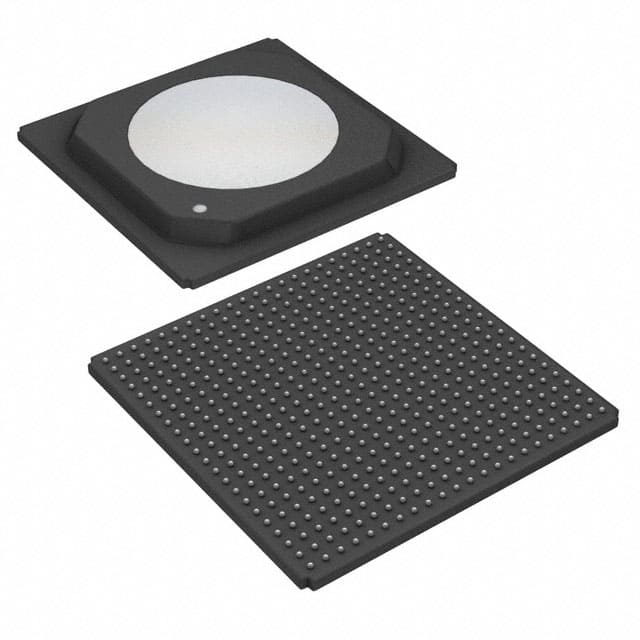

The Analog Devices / Maxim Integrated DS26519GNA2+ is a single-chip 16-port T1/E1/J1 transceiver, functioning as both a framer and a line interface unit (LIU). Each port is independently configurable for long-haul or short-haul lines. This device supports T1, E1, or J1 protocols with software-selectable termination for various line types including 100Ω T1 twisted pair, 110Ω J1 twisted pair, 120Ω E1 twisted pair, and 75Ω E1 coaxial applications.
Key features include hitless protection switching and crystal-less jitter attenuators that meet multiple ITU-T and ETS standards. The transceiver offers receive-signal level indication and transmit open/short-circuit detection. It supports T1 framing formats like D4, SLC-96, and ESF, as well as E1 G.704 and CRC-4 multiframe, and J1. The operating temperature range is -40°C to 85°C, and it requires an operating voltage between 3.135V and 3.465V.
This transceiver is supplied in a 484-HSBGA (23x23) package, designed for surface mount applications. It is suitable for use in routers, channel service units (CSUs), data service units (DSUs), muxes, switches, channel banks, and T1/E1 test equipment.
The DS26519GNA2+ is a 16-port T1/E1/J1 transceiver.
This transceiver supports T1, E1, and J1 protocols.
The operating temperature range is -40°C to 85°C.
The DS26519GNA2+ is supplied in a 484-HSBGA package.
The DS26519GNA2+ is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
