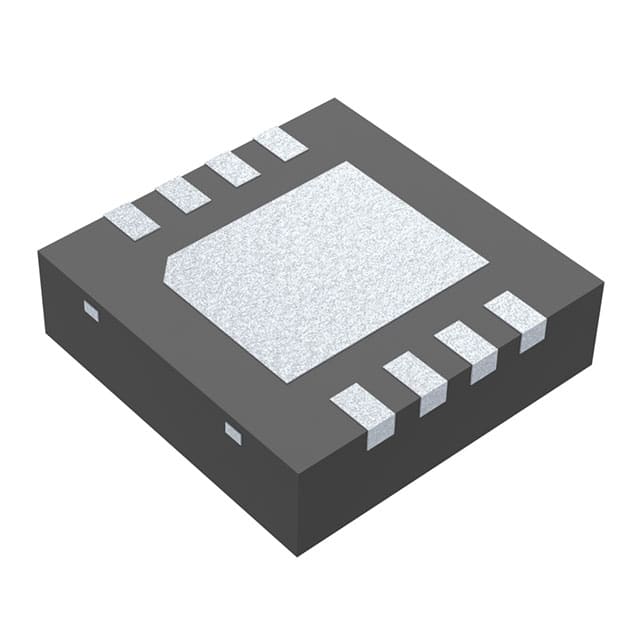

DS25BR120TSD/NOPB The Texas Instruments DS25BR120TSD/NOPB is a single-channel LVDS buffer designed for high-speed signal transmission. It operates at up to 3.125 Gbps.
Mfr Part #:

DS25BR120TSD/NOPB

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments DS25BR120TSD/NOPB is a single-channel LVDS buffer designed for high-speed signal transmission. It operates at up to 3.125 Gbps.
✓ Total Stock: 46,887 pcs
$ Price Range: $2.61

DS25BR120TSD/NOPB Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Unit Electronics Co.,Limited ✓
Non-Authorised Inventory information
33,110 pcs
On Request
33110 pcs On Request 1 On Request On Request On Request On Request On Request
Romaks Technologies ✓
Non-Authorised Inventory information
9,040 pcs
On Request
9040 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
4,737 pcs
On Request
4737 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DS25BR120TSD/NOPB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Current
Data Rate (Max)
Delay Time
Input
Lead Spacing
Mounting Type
Number of Channels
Operating Temperature
Output
Signal Conditioning
Supplier Device Package
Supplier Package
Type
Voltage
View Similar Products (0)

DS25BR120TSD/NOPB Description

Short technical summary and product information.

The DS25BR120TSD/NOPB from Texas Instruments is a single-channel LVDS buffer optimized for high-speed signal transmission over lossy backplanes and cables. It supports a signaling rate of up to 3.125 Gbps.



This buffer features a wide input common mode range, accepting CML, LVDS, and LVPECL signals, with LVDS output levels. It includes four levels of transmit pre-emphasis to help drive signals through challenging transmission media. The device operates over a temperature range of -40°C to 85°C and requires a supply voltage between 3V and 3.6V.



Designed for ease of integration, the DS25BR120TSD/NOPB comes in a compact 8-WSON (3x3 mm) package. It features on-chip 100Ω input and output termination, which minimizes insertion and return losses, reduces component count, and saves board space. The surface mountable design is suitable for various high-speed applications.

DS25BR120TSD/NOPB Quick Information

Product Type: LVDS Buffer
Series: DS25BR120
Canonical Name: DS25BR120TSD/NOPB 3.125-Gbps LVDS Buffer
Subcategory: LVDS Buffer

DS25BR120TSD/NOPB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DS25BR120TSD/NOPB Estimated Pricing

Qty Low High
1+ $2.61 $2.61

Estimated market price range - modelled values for guidance only, not live distributor offers.

DS25BR120TSD/NOPB Features

  • Single-channel 3.125 Gbps LVDS buffer.
  • Supports CML, LVDS, and LVPECL inputs.
  • Features four levels of transmit pre-emphasis.
  • Operates from -40°C to 85°C.
  • Compact 8-WSON (3x3 mm) surface mount package.

DS25BR120TSD/NOPB Applications

  • High-speed signal transmission.
  • Driving lossy backplanes.
  • Balanced metallic cable applications.
  • Signal integrity enhancement.

DS25BR120TSD/NOPB FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum data rate for the DS25BR120TSD/NOPB?

The maximum data rate is 3.125 Gbps.

What type of signals can the DS25BR120TSD/NOPB buffer accept?

It can accept CML, LVDS, and LVPECL input signals.

What is the operating temperature range for this LVDS buffer?

The operating temperature range is -40°C to 85°C.

What package type is the DS25BR120TSD/NOPB supplied in?

It is supplied in an 8-WSON (3x3 mm) package.

What is the RoHS status of the DS25BR120TSD/NOPB?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the DS25BR120TSD/NOPB?

The MSL is 1 Unlimited.
