| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30,133 pcs
|
30133 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| SVHC Present | |
| Tape & Reel |

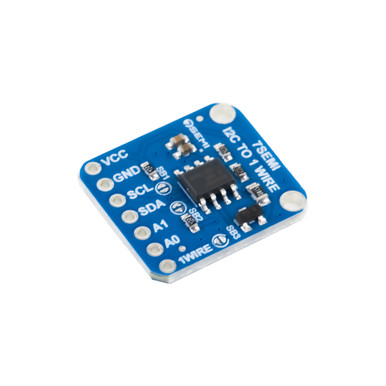

The DS2482-100 I2C to 1-Wire Master Breakout Module by Dallas Semiconductor is designed for efficient protocol bridging between I2C and 1-Wire networks in embedded systems. This module simplifies communication by eliminating the need for host-side waveform generation, powered by the DS2482-100 IC.
It supports both standard (100kHz) and fast (400kHz) I2C speeds, enabling robust two-way data exchange with various 1-Wire slave devices such as temperature sensors, memory chips, and digital switches. The breakout module is engineered for flexibility, supporting both standard and Overdrive 1-Wire speeds to ensure compatibility with a wide range of devices. Key features include onboard timing control, configurable I2C slave address pins, and intelligent signal processing.
This module is an ideal tool for developers and engineers working on projects in industrial automation, environmental monitoring, and IoT applications. It integrates programmable strong pullup control and external MOSFET support, providing additional current sourcing capabilities for energy-demanding 1-Wire devices, thereby enhancing performance in complex embedded environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DS2482-100 supports standard (100kHz) and fast (400kHz) I2C speeds.
The DS2482-100 supports both standard and Overdrive 1-Wire speeds.
The DS2482-100 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
The DS2482-100 is REACH Unaffected.
