DS21Q354B+
Analog Devices / Maxim Integrated

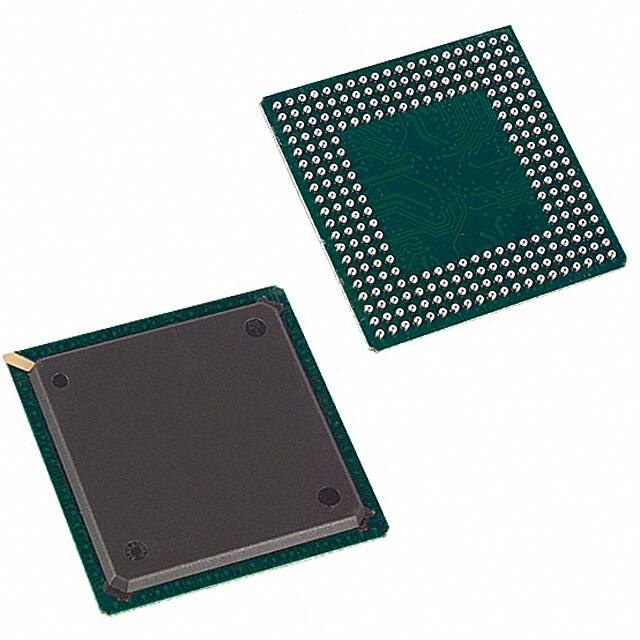

The Analog Devices / Maxim Integrated DS21Q354B+ is a Quad T1/E1 Transceiver IC. It features four independent transceivers in a 256-BGA package.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
646 pcs
|
646 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Function | |
| Interface | |
| Mounting Type | |
| Number of Circuits | |
| Supplier Device Package | |
| Voltage |
The Analog Devices DS21Q354C1 is a high-density Multi-Chip Module (MCM) integrating four independent E1 transceivers. This component operates at a 3.3V supply voltage and is housed in a compact 27mm x 27mm, 256-lead BGA package.
Each transceiver within the DS21Q354C1 includes a short and long haul line interface, a full-featured framer with alarm detection and generation, elastic stores, hardware-based signaling support, per DS0 channel control, and an HDLC controller. The device supports E1 interface standards.
Designed for surface mount applications, the DS21Q354C1 offers a robust solution for telecommunications infrastructure. Its packaging and electrical characteristics make it suitable for various telecom applications requiring reliable E1 signal transmission and reception.
The operating voltage is 3.3V.
The DS21Q354C1 is supplied in a 256-BGA (27x27mm) package.
The DS21Q354C1 is a surface mount device.
The DS21Q354C1 is RoHS3 Compliant.
The MSL is 1 Unlimited.
The REACH status is Unaffected.
