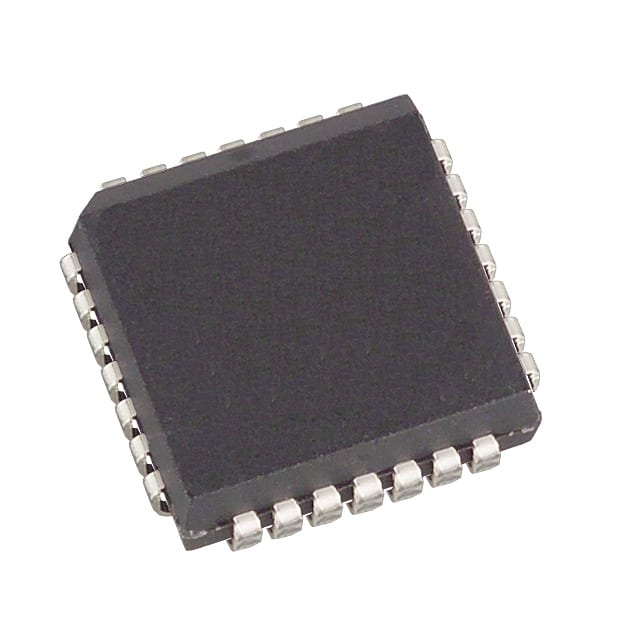

DS2176Q The Analog Devices DS2176Q is a telecom interface IC designed for synchronizing T1 data streams. It features a surface mount package and operates within a 0°C to 70°C temperature range.
Mfr Part #:

DS2176Q

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The Analog Devices DS2176Q is a telecom interface IC designed for synchronizing T1 data streams. It features a surface mount package and operates within a 0°C to 70°C temperature range.
✓ Total Stock: 5,000 pcs

DS2176Q Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DS2176Q Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Function
Interface
Lead Spacing
Mounting Type
Number of Circuits
Operating Temperature
Supplier Device Package
View Similar Products (0)

DS2176Q Description

Short technical summary and product information.

The DS2176Q from Analog Devices (formerly Maxim Integrated) is a low-power CMOS device specifically designed for synchronizing receive-side loop-timed T-carrier data streams with system-side timing. This telecom interface IC is ideal for applications requiring 1.544 to 2.048 MHz rate conversion.



Key features include a two-frame buffer depth, output indication of slips, and the ability to extract and buffer robbed-bit signaling. The device inhibits signaling updates during alarm or slip conditions, providing a robust integration feature. It interfaces to both parallel and serial backplanes, offering flexibility in system design.



The DS2176Q is supplied in a 28-PLCC surface mount package, making it suitable for various digital trunk, drop and insert equipment, transcoders, and digital cross-connect systems.



This IC operates with a typical supply current of 5mA and has an operating temperature range of 0°C to 70°C.

DS2176Q Quick Information

Product Type: Telecom Interface IC
Canonical Name: DS2176Q T1 Receive Buffer
Subcategory: Receive Buffer

DS2176Q Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DS2176Q Features

  • Synchronizes T1 data streams.
  • Ideal for 1.544 to 2.048 MHz rate conversion.
  • Extracts and buffers robbed-bit signaling.
  • Surface mount 28-PLCC package.
  • Low power CMOS device.

DS2176Q Applications

  • Digital trunks and cross-connects.
  • Drop and insert equipment.
  • Transcoders and PABX interfaces.
  • Private network equipment.

DS2176Q FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the DS2176Q?

The operating temperature range for the DS2176Q is 0°C to 70°C.

What is the typical supply current for the DS2176Q?

The typical supply current for the DS2176Q is 5mA.

What package type is the DS2176Q available in?

The DS2176Q is available in a 28-LCC (J-Lead) package and a 28-PLCC supplier device package.

What is the interface type for the DS2176Q?

The DS2176Q features a TDM interface.

What rate conversion is the DS2176Q ideal for?

The DS2176Q is ideal for 1.544 to 2.048 MHz rate conversion.
