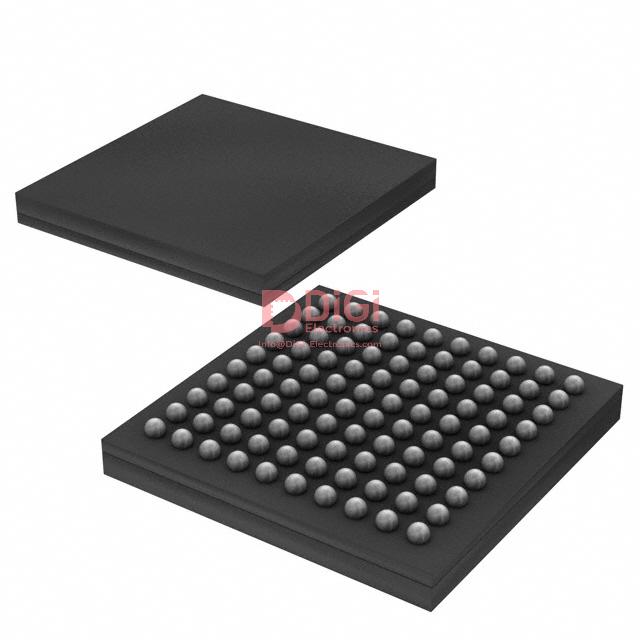

DS2155GN The DS2155GN is a software-selectable T1, E1, or J1 single-chip transceiver from Dallas Semiconductor. It features a wide operating voltage range and temperature tolerance.
Mfr Part #:

DS2155GN

Available from 1 distributors
Mfr Name: Dallas Semiconductor
Dallas Semiconductor
The DS2155GN is a software-selectable T1, E1, or J1 single-chip transceiver from Dallas Semiconductor. It features a wide operating voltage range and temperature tolerance.
✓ Total Stock: 120 pcs
$ Price Range: $0.30

DS2155GN Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
120 pcs
On Request
120 pcs On Request 1 On Request On Request 742 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DS2155GN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Function
Interface
Mounting Type
Number of Circuits
Operating Temperature
Supplier Device Package
Voltage
View Similar Products (0)

DS2155GN Description

Short technical summary and product information.

The DS2155GN by Dallas Semiconductor is a versatile single-chip transceiver (SCT) designed for T1, E1, and J1 applications. It integrates a line interface unit (LIU), framer, HDLC controllers, and a TDM backplane interface, controlled via an 8-bit parallel port. This device supports both short-haul and long-haul line interfaces, offering clock and data recovery, as well as waveform shaping capabilities.



The transceiver operates within a supply voltage range of 3.14V to 3.47V and can function across an extended temperature range of -40°C to 85°C. It is housed in a 100-CSBGA package, suitable for surface mount applications. The DS2155GN is designed for use in T1/E1/J1 line cards, switches, routers, and add-drop multiplexers.



Key features include complete T1/DS1/ISDN-PRI/J1 and E1 (CEPT) PCM-30/ISDN-PRI transceiver functionality. It also provides CMI coder/decoder for optical interfaces and a crystal-less jitter attenuator. The device offers fully independent transmit and receive functionality, dual HDLC controllers, and a programmable BERT generator and detector. Internal software-selectable termination resistors support 75Ω/100Ω/120Ω for T1 and E1 interfaces.

DS2155GN Quick Information

Product Type: Telecom Interface IC
Canonical Name: DS2155GN Single-Chip Transceiver
Subcategory: Single-Chip Transceiver

DS2155GN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DS2155GN Estimated Pricing

Qty Low High
1+ $0.30 $0.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

DS2155GN Features

  • Software-selectable T1, E1, J1 transceiver
  • Supports short-haul and long-haul applications
  • Wide operating voltage and temperature range
  • Integrated HDLC controllers and jitter attenuator
  • 100-CSBGA surface mount package

DS2155GN Applications

  • Used in power management circuits
  • Suitable for communication equipment
  • Ideal for integrated circuit power supplies
  • Supports robust operation in various environments

DS2155GN FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the DS2155GN?

The operating voltage for the DS2155GN is between 3.14V and 3.47V.

What is the operating temperature range of the DS2155GN?

The DS2155GN operates in a temperature range of -40°C to 85°C.

What package type is the DS2155GN available in?

The DS2155GN is available in a 100-CSBGA (10x10) package.

What interfaces does the DS2155GN support?

The DS2155GN supports T1, E1, J1, and HDLC interfaces.

What is the RoHS status of the DS2155GN?

The RoHS status of the DS2155GN is RoHS3 Compliant.
