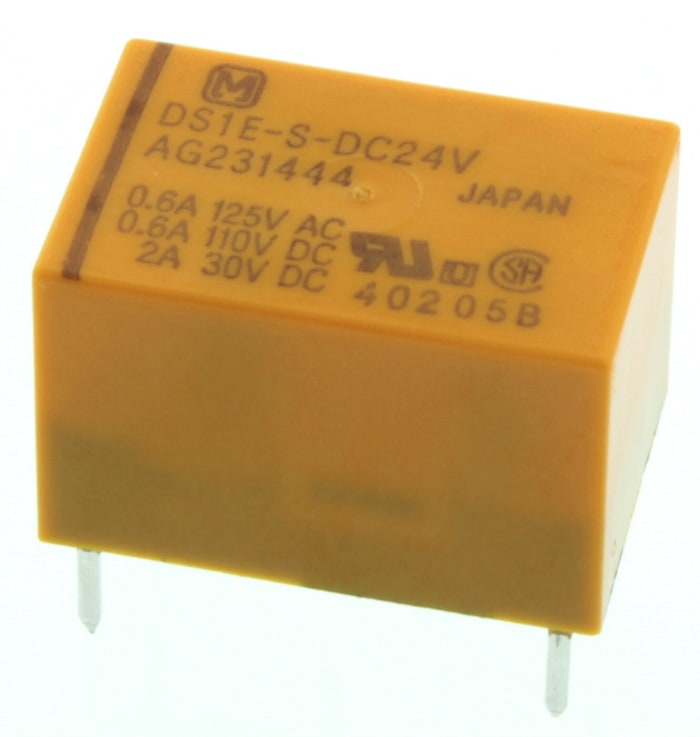

DS1E-S-DC24V The Panasonic DS1E-S-DC24V is a PCB mount signal relay with a 24V DC coil and SPST contact configuration. It offers a 3A switching current and gold-plated contacts.
Mfr Part #:

DS1E-S-DC24V

Available from 1 distributors
Mfr Name: NAIS
NAIS
The Panasonic DS1E-S-DC24V is a PCB mount signal relay with a 24V DC coil and SPST contact configuration. It offers a 3A switching current and gold-plated contacts.
✓ Total Stock: 31 pcs
$ Price Range: $0.05

DS1E-S-DC24V Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
31 pcs
On Request
31 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DS1E-S-DC24V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Coil Resistance
Coil Voltage
Contact Material
Country of Origin
Failure Rate
Height
Length
Operating Temperature
Terminal Type
Width
View Similar Products (0)

DS1E-S-DC24V Description

Short technical summary and product information.

The Panasonic DS1E-S-DC24V is a highly sensitive miniature PCB mount signal relay from the DS series. It features a 24V DC coil voltage and a Single Pole Single Throw (SPST) contact configuration, capable of switching up to 3A at 250V AC or 220V DC. The relay is designed for easy mounting on PCB boards and has a sealed construction suitable for automatic washing processes.



Key electrical specifications include a coil resistance of 2800Ω and a coil power of 200mW. The contacts are gold-plated for reliability. Mechanically, it measures 20.2mm in length, 9.8mm in width, and 9.9mm in height. The operating temperature range is from -40°C to 70°C.



This relay is suitable for use in difficult environments due to its high-performance polarized magnetic circuits, offering high resistance to shock and vibration. Typical applications include telecommunications, measurement equipment, and computer equipment.

DS1E-S-DC24V Quick Information

Product Type: PCB Signal Relay
Series: DS
Canonical Name: NAIS DS1E-S-DC24V PCB Signal Relay
Subcategory: PCB Signal Relay

DS1E-S-DC24V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DS1E-S-DC24V Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

DS1E-S-DC24V Features

  • 24V DC coil voltage.
  • 3A switching current capacity.
  • SPST contact configuration.
  • Gold-plated contact material.
  • PCB mount terminal type.

DS1E-S-DC24V Applications

  • Suitable for telecommunications equipment applications.
  • Used in measurement and test equipment.
  • Ideal for computer and data processing devices.
  • Applicable in environments requiring shock and vibration resistance.

DS1E-S-DC24V FAQs

7 frequently asked questions generated from this part’s specifications.
What is the coil voltage of the relay?

The coil voltage is 24V DC.

What contact configuration does this relay have?

The contact configuration is SPST.

What is the switching current capacity?

The relay can switch up to 3A.

What are the maximum switching voltages?

It supports up to 250V AC and 220V DC switching voltages.

What are the physical dimensions of the relay?

The relay measures 9.9mm in height, 20.2mm in length, and 9.8mm in width.

What is the contact material?

The contact material is gold plated.

Where is this relay manufactured?

It is manufactured in Japan.
